The AR12020 full range 12-channel, X-Plus compatible receiver features DSM2 and DSMX technology and is compatible with all Spektrum and JR aircraft radios that support DSM2 and DSMX technology including: JR12X, 11X, X9503, X9303, Spektrum DX10t, DX8, DX7, DX7se, DX6i, DX5e and Module Systems.

Applications
Full range up to 12-channel aircraft including:
� All types and sizes of glow, gas and electric powered airplanes
� All types and sizes of no-powered gliders
� All types and sizes of glow, gas and electric powered helicoptersctors

Features
12-channel full range receiver
Includes one internal and three remote receivers
SmartSafe� failsafe system
Flight Log and Telemetry compatible (optional)
Patented MultiLink� receiver technology
X-Plus compatible
QuickConnect�
2048 Resolution
High-speed 11ms operation when used with capable transmitters

Specs
Antenna Length	31mm
Band	2.4GHz
Bind Method	Bind Plug
Data Flight Log Compatible	Yes
Failsafe	Yes
Input Voltage	4.8-10V
Model Type	Airplane
Modulation	DSM2/DSMX
Number of Channels	12
Number of Receivers	4
Range	Full
Resolution	2048
Telemetry	Yes
Length	2.05 in (52mm)
Width	1.83 in (46.5mm)
Height	0.60 in (15.3mm)
Weight	1.4oz (40g)

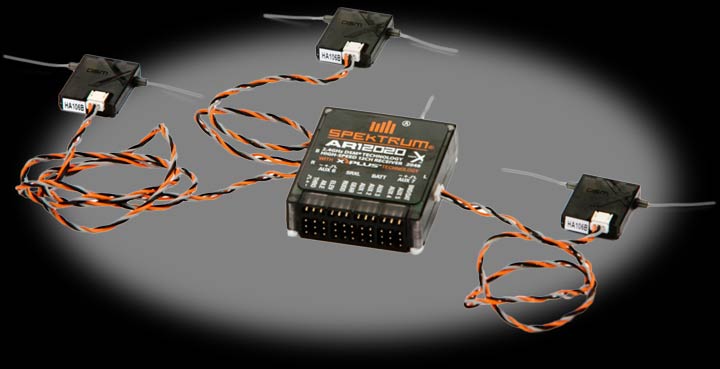

Includes
AR12020 Receiver main unit
Remote receiver (3)
24" remote receiver extension (1)
12" remote receiver extension (1)
9" remote receiver extension (1)
User Guide
Male/Female bind plug

NOTE: Not for use in airplanes that have full carbon fuselages OR that have significant carbon or conductive structures. We recommend using either the AR6255 or AR9300/AR9310 receivers for carbon fuselage applications. The AR12020 receiver is not compatible with the Spektrum DX6 park flyer transmitter.
