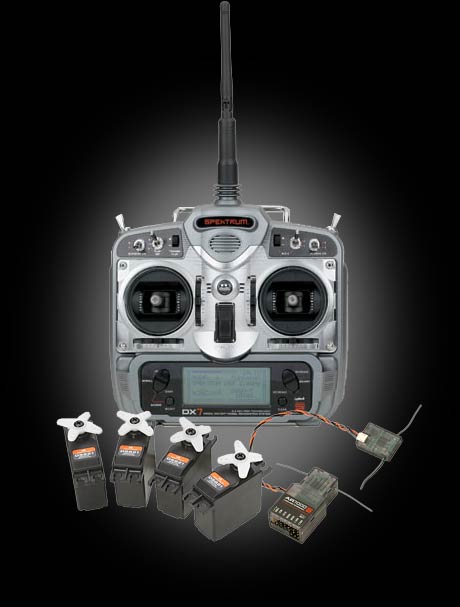

Robot MarketPlace - Spektrum DX7 7-channel 2.4Ghz Radio System

The Spektrum DX7 does away with all that 72Mhz/75Mhz mess and moves on to a whole NEW band- 2.4Ghz! This Digital Spread Spctrum radio system is a significant upgrade from the DX6, not just 1 additional channel, but a whole range of NEW programming and mixing options!

Glitching and range impairment from motor, servo, ESC and mechanical RF “noise” will be a thing of the past. And no form of channel selection will be necessary on your part. Your DX7 selects the channel for you. When you fire up your DX7, it searches for, selects and locks onto clear channels. (There are 80 channels in the 2.4GHz band.) And because international regulation of the band is very strict, your radio will neither sustain interference from – nor cause interference to – any other 2.4GHz device worldwide. And that applies, of course, to its simultaneous operation near other 2.4GHz RC radios as well. DX7 frequencies are so much higher than those of conventional RC channels that you radio won’t even recognize the existence of 27,50, 72 or 75MHz RC signals. Nor will conventional RC receivers “hear” your DX7 transmissions.

In short, 2.4GHz DSM RC is a win-win deal for everyone!

A whole new type of receiver.

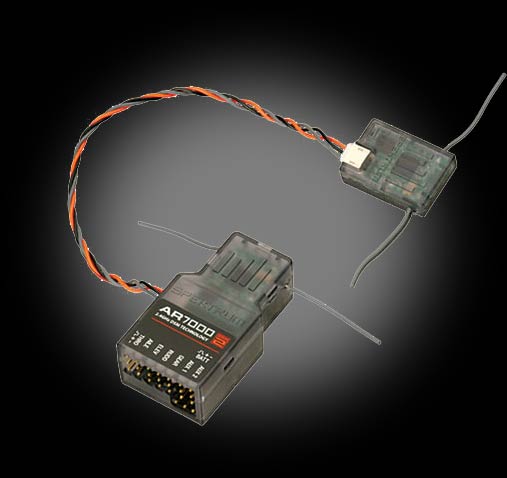

The AR7000 dual receiver that comes with the DX7 is key to the system’s incredibly robust RF link. Comprised of a compact main receiver that is linked to an even smaller satellite receiver by a 6” lead, the AR7000 acts as a pair of extremely sharp RF “eyes” that each take in a slightly different view of the signal environment. Information from both receivers is then processed by patent-pending Spektrum software that takes information from each receiver and combines it to form the most vivid “picture” of an RF signal than has ever been possible before. What’s more, there are no long antennas to accommodate. The AR7000’s short 3” antennas don’t require any external exposure, so installation is an absolute breeze.

AR6000 and BR6000 compatible.
DX6 owners will be pleased to know that the AR6000 receivers work perfectly with this DX7 radio. In fact, these receivers will actually benefit from the DX7’s signal speed advantages, as well as ModelMatch and ServoSync functionality.

This advanced radio features:
• 7 Channels
• Digital DSM™ Spread Spectrum Modulation
• 20-model memory
• 4 x DS821 Sport Digital Servos with high-tech resin gears
• 1500mAh transmitter battery pack
• 1100mAh 4.8V receiver battery pack
• Overnight charger for TX & RX packs
• Switch assignment screen
• Programmable mixes
• 3-axis dual rate & expo
• 3-position flap mixing
• Servo Monitor
• CCPM, 2-servo 90°, 3-servo 90°, & 3-servo 120°
• Adjustable stick length
• Digital trims for precise adjustment
• AR7000 Receiver (included) weighs only 17 grams, main unit size is 47 x 25 x 16mm and the 'satellite' module is 25 x 18 x7mm. Antennas on each are only about 1 inch long! NO need for external antenna exposure in most models!
• Advanced Airplane Function Modes (There are actually two models of the DX7- The Robot MarketPlace stocks only the Airplane version, but we can special-order the Helicopter version for you.)

Click here to add your own review or comment for this product.

1/30/2011

Chaos2

Love this radio

And I'm planning on ordering another one from the Robot Market Place when I get back from vacation. It is easy to program and loaded with great features. I like not putting up with a long antenna. The dual receiver has a very strong signal. Also, the radio and the receiver doesn't cause a drain on the batteries like the older radios. I highly recommend.

5/6/2009

Jim

Very nice radio

I wanted a step up from the DX6i, so that I would have the flexibility of doing some custom programmed mixing and the like, and with the DX7, I got that and more! This radio has been everything I wanted in a transmitter. No more crystals! No more worrying about someone 'stepping on' my channel. The response time is perfect, and this radio does NOT feel cheap- nice and rugged. Great display and easy to use. I would definitely recommend this to others.
