0-SMPH-HV Simple-H HV H-Bridge <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Robot Power Simple-H is a low-cost robust H-bridge circuit suitable for use driving DC motors and other DC loads in the ~25A and 6V-28V range. A wide range of command sources from switches to 555 timer circuits to microcontrollers, BasicStamps and Arduinos may be used to control the Simple-H. The classic "green" Simple-H requires 3V-5V logic level signals on its command inputs.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Simple-H does not have any on-board logic to interpret R/C, serial, analog voltage or other commands. An external signal source is required to translate command inputs into the switching signals needed to drive the Simple-H power chips. This flexibility allows the Simple-H to be driven from from a signal source as simple as a pushbutton or as complex as a microcontroller or BasicStamp. Even a desktop or laptop PC can be used through a parallel port or USB port expander.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Simple-H HV is a version of the Simple-H that allows up to 28V input signals. The circuit board footprint and mounting pattern is exactly the same between the two versions. The indicator LEDs on the HV have a constant-current driver so their output is independent of signal voltage and does not load the input signal. These features allow the Simple-H to be controlled by using switches directly off the 12V or 24V battery voltage rather than requiring a 5V regulator to condition the input command voltages. Also 12V/24V outputs from PLC modules may now be used directly to drive a Simple-H.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unlike many competing products which advertise similar current ratings, the Simple-H ratings are for a period measured in minutes or hours not a few seconds or less. One competitor even advertises a 30A controller where the 30A rating is for "a few milliseconds". With a Simple-H you can be sure if you need 20A of current you can get 20A out of it for as long as you need it.</font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font></p>
<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td width="33%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Supply Voltage</font></td>
<td width="33%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V to 28V (24V max battery rating) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Discharge </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20A (25A with fan) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> Max Discharge </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">&gt;45A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3 oz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Chips </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 each BTS7960B </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.016 ohm max at 25C </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DC to 20kHz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cooling</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Heatsinks </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Logic Interface </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3-5V, miniumum 3 pins required </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current and Temp Limiting </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Built in to power chips </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Sense Outputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0745V per Amp -- 2.98V at 40A </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Connectors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-pos 0.1&quot; screw terminal, 2-pos fan terminal, 4 each screw terminals for power wires </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Enclosure</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">None</font></td>
</tr>
</table>

Simple-H HV H-Bridge
The HV version is identical to the Simple-H except that the command input voltage levels may be up to 28V.

$59.99
Robot MarketPlace - Simple-H HV H-Bridge

Electronics
    Robot Power Speed Controllers

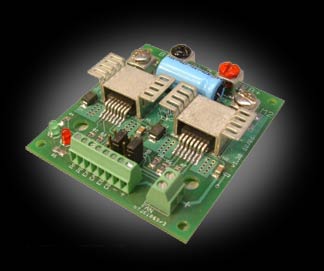

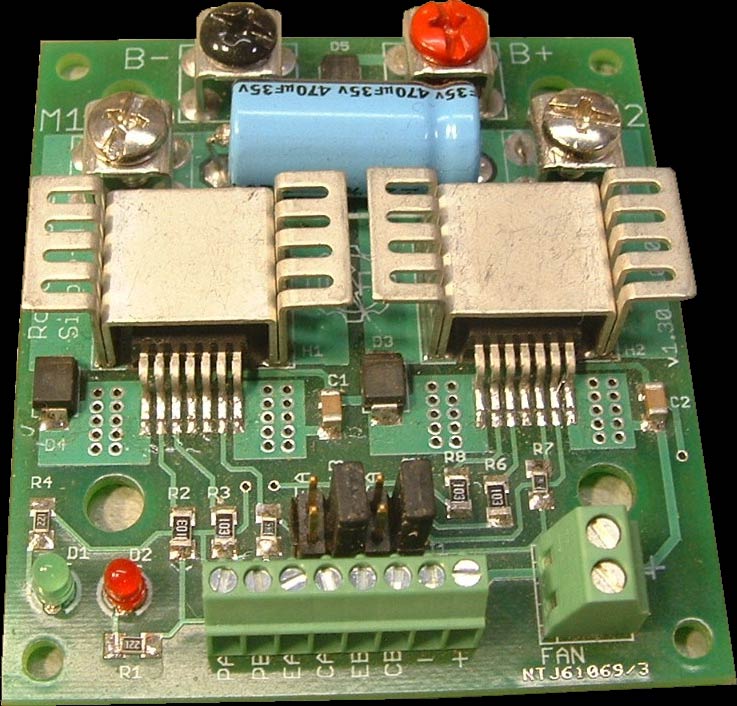

Click photo to enlarge.

Simple-H HV H-Bridge
Part# 0-SMPH-HV




Please see this product on the new Robot MarketPlace web site. Click here
