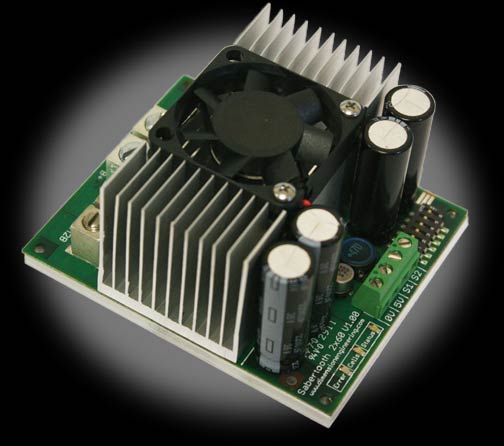

Robot MarketPlace - Sabertooth 2 x 60 Dual Motor Speed Controller

The Sabertooth 2X60 is one of the most versatile, efficient and easy to use dual motor drivers on the market. It is suitable for high powered robots - up to 120lbs in combat or up to 1000lbs for general purpose robotics.

Out of the box, the Sabertooth can supply two DC brushed motors with up to 60A each. Peak currents of 120A per channel are achievable for a few seconds.

Overcurrent and thermal protection means you'll never have to worry about killing the driver with accidental stalls or by hooking up too big a motor.

Sabertooth allows you to control two motors with: analog voltage, radio control, serial and packetized serial. You can build many different robots of increasing complexity for years to come with a Sabertooth. Sabertooth has independent and speed+direction operating modes, making it the ideal driver for differential drive (tank style) robots and more.

The operating mode is set with the onboard DIP switches so there are no jumpers to lose. Sabertooth features screw terminal connectors - making it possible for you to build a robot without even soldering.

Sabertooth is the first synchronous regenerative motor driver in its class. The regenerative topology means that your batteries get recharged whenever you command your robot to slow down or reverse. Sabertooth also allows you to make very fast stops and reverses - giving your robot a quick and nimble edge.

Sabertooth has a built in 5V Switch-mode BEC that can supply power for your receiver or microcontroller, as well as 3-4 standard analog servos. The lithium cutoff mode allows Sabertooth to operate safely with lithium ion and lithium polymer battery packs - the highest energy density batteries available.

Sabertooth's transistors are switched at ultrasonic speeds (24kHz) for silent operation.

Sabertooth 2X60 uses 0.8 milliohm MOSFETs in its bridge.

Use of our motor drivers with cheap AC adapters is not recommended. Use a battery or at least put a battery in parallel with a DC supply.

60A continuous, 120A peak per channel
6-30V nominal, 33.8V absolute maximum

Synchronous regenerative drive
Ultra-sonic switching frequency
Thermal and overcurrent protection
Lithium protection mode

Input modes: Analog, R/C, simplified serial, packetized serial

Size: 3 x 3.5 x 1.8 in.(76 x 89 x 46 mm) Weight: 8.4oz.

Click here to add your own review or comment for this product.

5/15/2013

robomower

Good drive. Works well

good drive. Using it with RC application and setup easy. Robot marketplace seems to be good people to do business with. Good communications and fast shipping.

5/7/2013

Renthal

Great power in a simple package

I used the 2x60 in an RC lawn mower I built last summer and it is still going strong. It is powering 2 permobile c-300 wheelchair motors with 2 75ah marine deep cycle batteries and turning 15x5-6 turff tires.

The Setup was easy and strait forward. I over build everything so the controller has yet to even break a sweat pushing my rig even with friends riding on top of it for giggles.

If you want a stout controller look no further as this is a winner!

4/22/2013

perry

sabertooth 2 x 60

sabertooth 2 x 60 installed easly with little problems and work exacly the way i wanted it to
installed it in my 1/14th scale dozer drives just like the real thing
wired up easy with online manual
