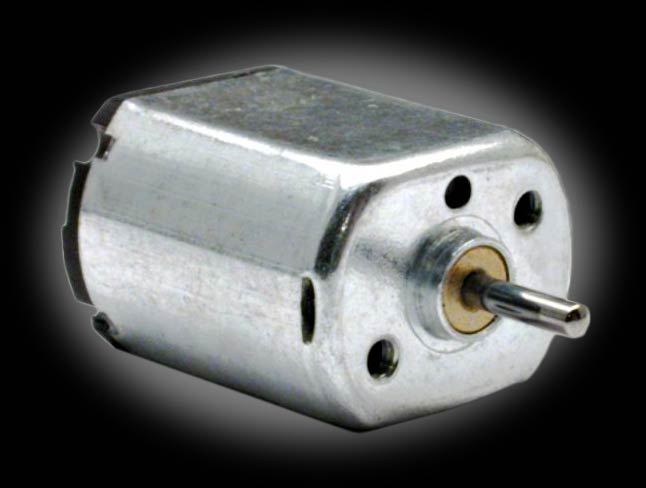

This 030 form-factor motor with precious-metal brushes offers pretty good performance for a flat-sided motor. Offering 7400 rpm @ 4.7V, drawing 150mA and giving 4 gm*cm torque (17 @ stall), it's very similar to the Mabuchi FF-030 it replaces.
Click on a thumbnail to view full size image. |
|
