0-R0415 RoboClaw HV 2x60A Dual Motor Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The RoboClaw HV 2x60A motor controller 60V is an extremely efficient, versatile, dual channel synchronous regenerative motor controller. It can supply two brushed DC motors with 60 Amps continuous and 120 Amps peak. The Roboclaw HV 2x60A 60V also support main battery voltages upto 60V.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RoboClaw supports multiple sensor inputs including dual quadrature encoders with up to 19.6 million pulses per second, potentiometers and absolute encoders.With dual quadrature decoding you get greater control over speed, velocity and direction. Automatically maintain speed and direction even if the load changes. With the ability to use potentiometers you can easily create giant servo systems and control them from any of RoboClaw's interface modes.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The RoboClaw motor controller comes equipped with several built in modes to controller your motors. Use standard RC receiver/transmitter, serial devices, analog sources or a microcontroller such as an Arduino.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">As a synchronous regenerative motor controller RoboClaw will charge the attached battery during a slow down or breaking action. With the advance circuitry it can also change direction during full throttle without damage! RoboClaw also incorporates a lithium cutoff mode which protects your batteries from damage. Get the power to win your next robotics competition!</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Supports up to 60V<br />
USB Interface<br />
3.3V Compliant Outputs<br />
5V Tolerant Inputs<br />
Quadrature Encoders<br />
Absolute Encoders<br />
Position and Velocity Control<br />
Encoders Supported in all Modes<br />
High Resolution Current Sense<br />
High Speed Direction Change<br />
Battery Level Monitoring<br />
Dual Channel Quadrature Decoding<br />
Dual 19,600,000 PPS Per Channel<br />
Thermal Protection<br />
Regenerative Breaking<br />
Serial, RC or Analog Control<br />
Easy to Use<br />
Can be Bussed</font></p>

RoboClaw HV 2x60A Dual Motor Controller
The RoboClaw HV 2x60A motor controller 60V is an extremely efficient, versatile, dual channel synchronous regenerative motor controller.

$299.95
Robot MarketPlace - RoboClaw HV 2x60A Dual Motor Controller

Electronics
    Robo Claw Speed Controllers


Click photo to enlarge.

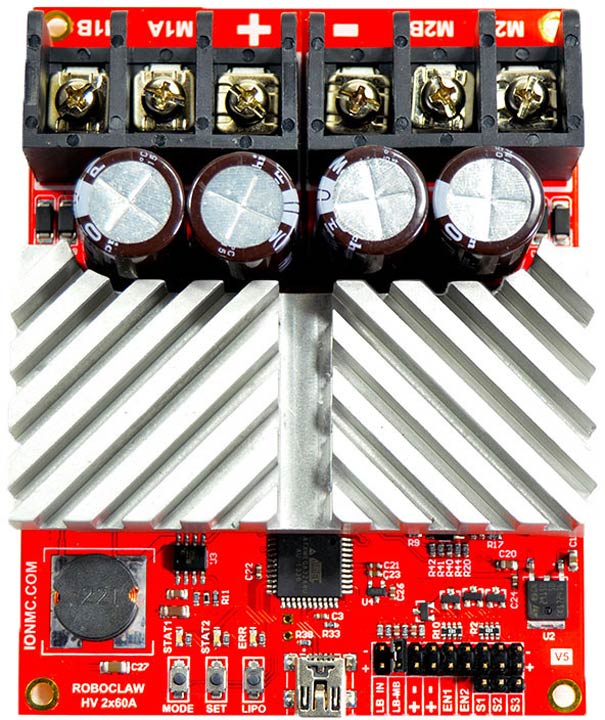

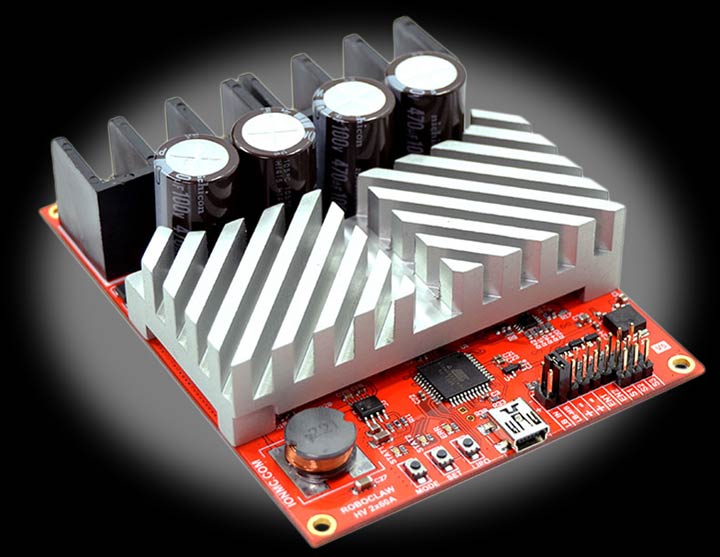

RoboClaw HV 2x60A Dual Motor Controller
Part# 0-R0415
