Tired of charging one battery at a time? How about having to wait until you're done charging your lipos before you can charge your NiXX batteries? Try the Quattro B6! Charge and balance up to four battery packs with different chemistries and configurations at the same time! Just plug your batteries into the charging ports, and the Quattro will charge all four of them at once to their maximum capacity.
The unit consists of 4 independent microprocessor controlled 50-watt chargers. Each can charge any of the available battery types. Each of the chargers can balance-charge Lithium batteries up to 6 cells. Requires a DC power source, either a 12V DC car battery or an AC/DC power supply greater than 200 watts.

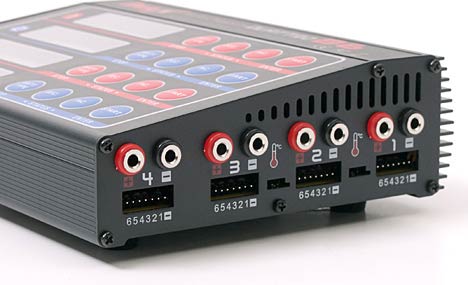

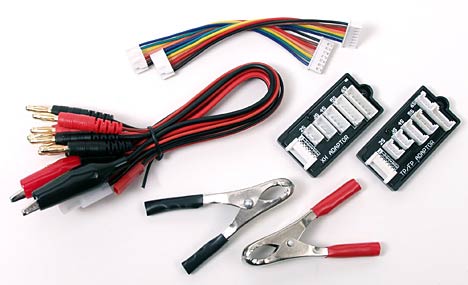

The balance port connection pins are set at 2.5mm pin spacing and you can balance any pack that has a 2.5mm spacing balance connector, without using an adapter. The charger comes with 2 adapters for balancing: one for Thunder Power lipo packs (2.0mm pin spacing) and one for JST XH batteries.
Specs
Operating Voltage Range: DC 11 to 15 Volt
Power Source: 12V DC (car battery - AC/DC Power Supply (>200 Watts)
Charge Power: 50 Watts, current is regulated accordingly - eg. 11.1V battery: charge current approx. 4.5A; 22.2V battery: charge current approx. 2.2A
Discharge Power: 5 Watts, current is regulated
Cell Count: 1-15 NiCd/NiMH cells, 1-6 LiPo/LiIon/LiFe cells, 1-10 Lead-Acid cells (2-20V)
Current Drain Balancing (LiPo): 300mA/cell
Charge Termination (NiCd/NiMH): Automatic, negative Delta Peak method
Charge Termination (Lead-Acid/Lithium): Automatic, voltage-dependent, CC-CV process
Dimensions: 9 in. x 6 in. x 2.5 in.
Weight: 38-1/2 oz. (1.09 Kg)
$139.95
