Robot MarketPlace - Artifist Robotics ProtoQuik Starter Framing Kit

Artifist Robotics ProtoQuik robotic chassis kit gives you the ability to create a strong, durable robotic chassis frame in about an hour.

The system of 6061-T6 extrusions and precision CNC milled connector plates, bearing and motor mounts allow for a no weld, no machining needed solution to create your next robotic project.

With minimal tools and almost no instruction you can assemble a new design to get you on your way to your next creation. This is an Erector set for the 21st century, allowing you to jump right over the technical issues of drivetrain, electronics and framing to let your imagination run free. Create the next robot for your hobbies or prototype out your next business venture.

These kits give you a a platform to build a robot up to 500lbs!. The system is designed to accept most of the popular motors and gearboxes for robotic combat and FIRST competitions already. We have tested our frames in the UL labs of robotics, in combat conditions at Battlebots, Robot Wars and RoboGames competitions They are tough and flexible enough to allow a wide range of designs and applications.

Quantity	Included Parts
4	2' x 3" Beveled exterior U-channel framing rails
4	Universal slider bearing mounts with 0.5" bearings and inserts
4	Exterior corner connections
4	6" hardened 0.5" wheel shafting with key and keyways
4	3-1/2" Colson wheels with Al inserts
4	Generic slider motor mount plates
1 bag	1/4"-20 set screws for mounting frame
1 bag	1/4"-20 0.5" buttonhead bolts for corner connectors

Please note: The framing kit does NOT include motors, electronics or radio devices. The dropdown menus above are to select items in addition to what is included in the kit.

Click on a thumbnail to view full size image.

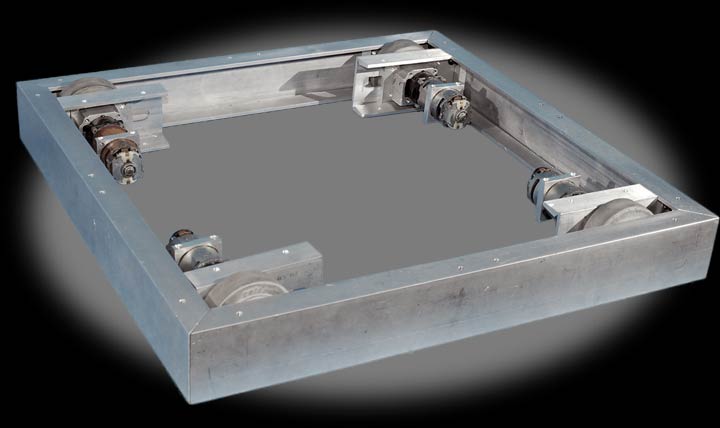

Framing View

Corner Connection

U-channel Rail

I-Beam

T-Connector

Wheel & Insert

Bearing Sliders

Mount Options (motors not included)
