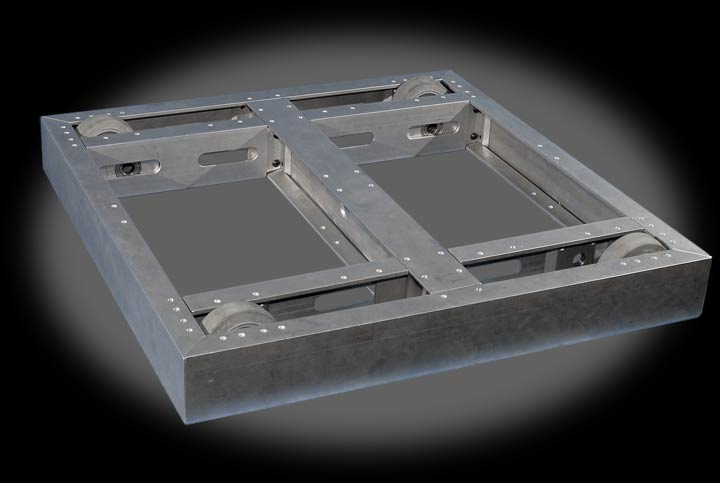

0-PTQ-DELUXE Artifist Robotics ProtoQuik Deluxe Framing Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Artifist Robotics ProtoQuik robotic chassis kit gives you the ability to create a strong, durable robotic chassis frame in about an hour. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The system of 6061-T6 extrusions and precision CNC milled connector plates, bearing and motor mounts allow for a no weld, no machining needed solution to create your next robotic project. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">With minimal tools and almost no instruction you can assemble a new design to get you on your way to your next creation. This is an Erector set for the 21st century, allowing you to jump right over the technical issues of drivetrain, electronics and framing to let your imagination run free. Create the next robot for your hobbies or prototype out your next business venture. </font></p>

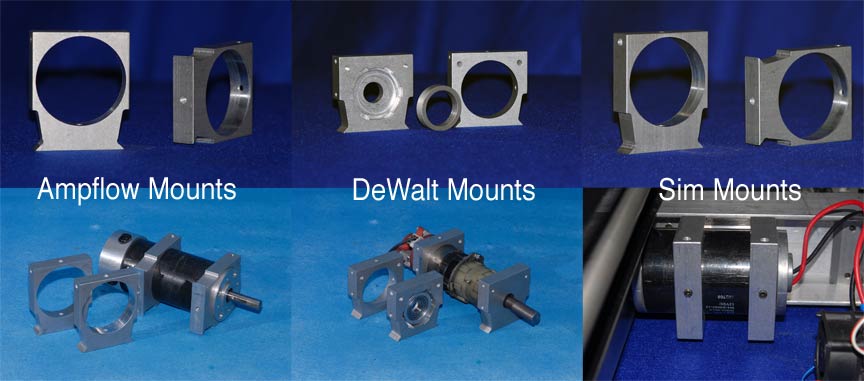

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These kits give you a a platform to build a robot up to 500lbs!. The system is designed to accept most of the popular motors and gearboxes for robotic combat and FIRST competitions already. We have tested our frames in the UL labs of robotics, in combat conditions at Battlebots, Robot Wars and RoboGames competitions They are tough and flexible enough to allow a wide range of designs and applications.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td width="25%"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Quantity</font></td>
<td width="75%"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Included Parts </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>

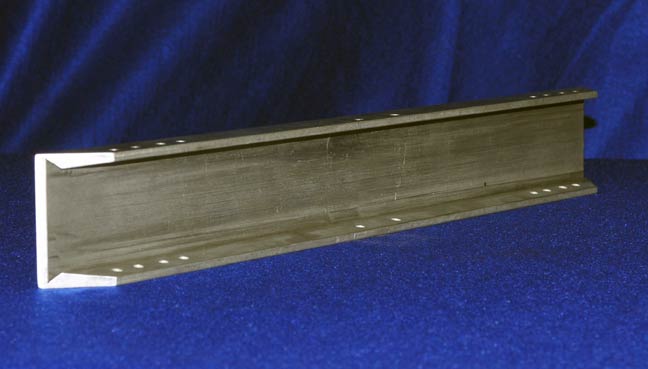

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2' Beveled exterior U-channel framing rails </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9.5" Straight U-channel wheel/extension rails</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>

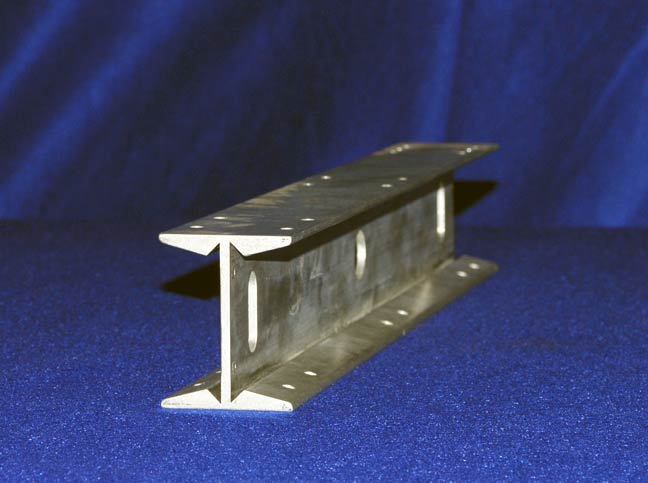

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">22.5" I-channel cross member</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8</font></td>

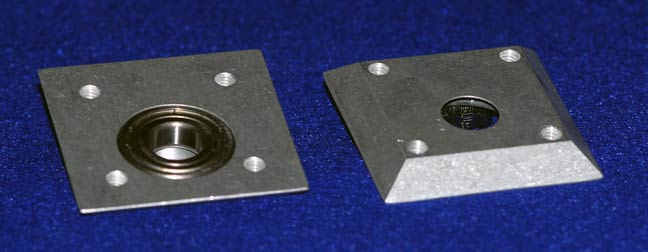

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Universal slider bearing mounts with 5/8" bearings</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>

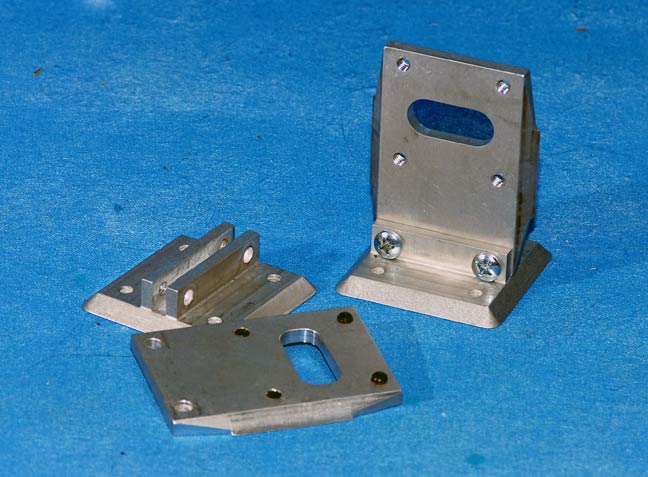

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">T-connectors</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>

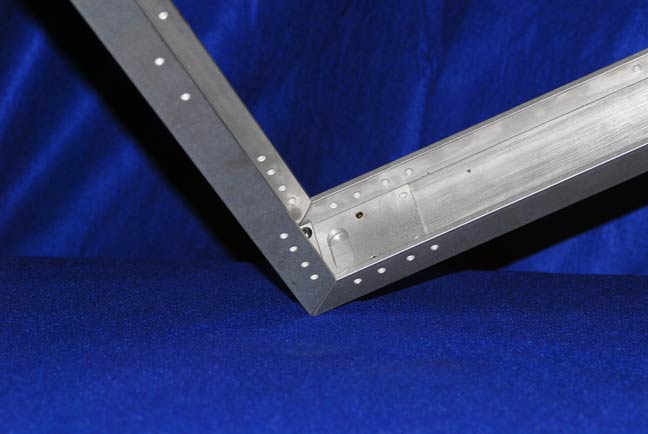

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Exterior corner connectors</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Interior connectors</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6" Hardened 5/8" wheel shafting with key and keyway</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>

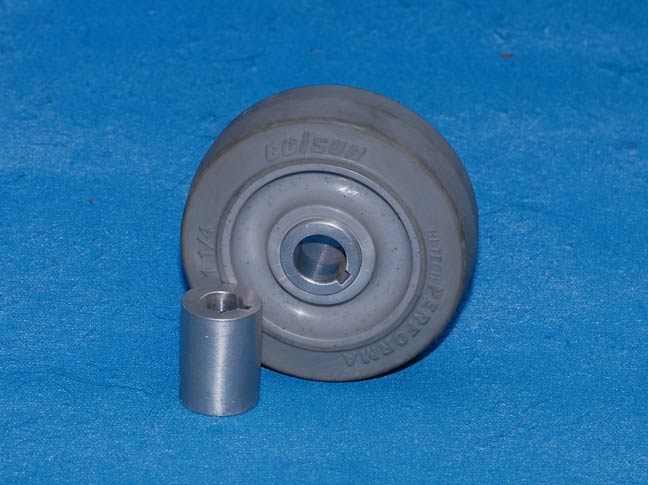

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3-1/2" Colson wheels with Al inserts</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1 bag </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/4"-20 set screws for mounting frame</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1 bag </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/4"-20 1/2" buttonhead bolts for corner connectors</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1 bag </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/4"-20 3/4" buttonhead bolts for T-connectors</font></td>
</tr>
</table>
<p><font color="ff0000" size="2" face="Arial, Helvetica, sans-serif">Please note: The framing kit does NOT include motors, electronics or radio devices. The dropdown menus above are to select items in addition to what is included in the kit.</font></p>
$795.00
