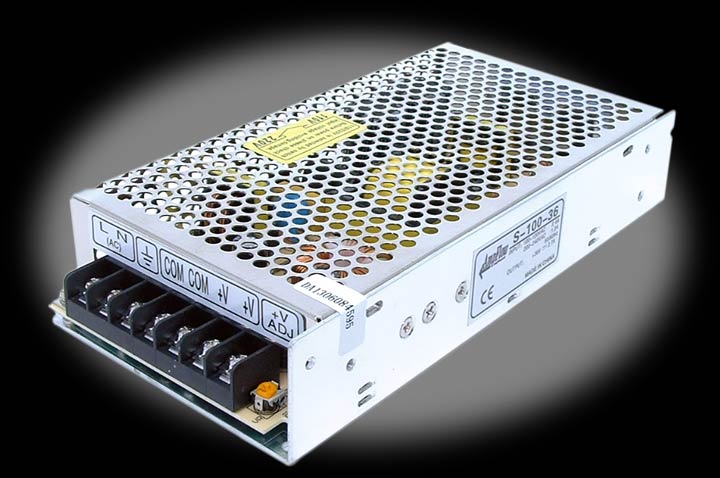

0-PS-100W-36V AmpFlow 36V 2.7A Power Supply
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">AmpFlow motors and controllers can be used in industrial machinery or other stationary applications with our high-current power supplies. Connect these units to 110 or 220 Volts AC household power and they will supply 5, 12, 24, 36, or 48 volts DC for use with AmpFlow motors.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Every power supply goes through a full-load burn-in test so no defective unit leaves the factory. The built-in fan turns on automatically when the unit gets warm and the power supply shuts down temporarily if the temperature, current, or voltage go beyond the safe operating range. And short-circuit and overload protections helps these units survive harsh operating conditions.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These high-efficiency power supplies have an output voltage that is adjustable by plus or minus 10%. And they include an EMI filter to minimize interference with radio signals, and a soft-start circuit that reduces the AC inrush current peaks.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DC Voltage Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">36V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">AC Voltage Input </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">110/220</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Amps Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.7 amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Watts Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100 watts </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8 x 4 x 1.5 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3 lbs </font></td>
</tr>
</table>
