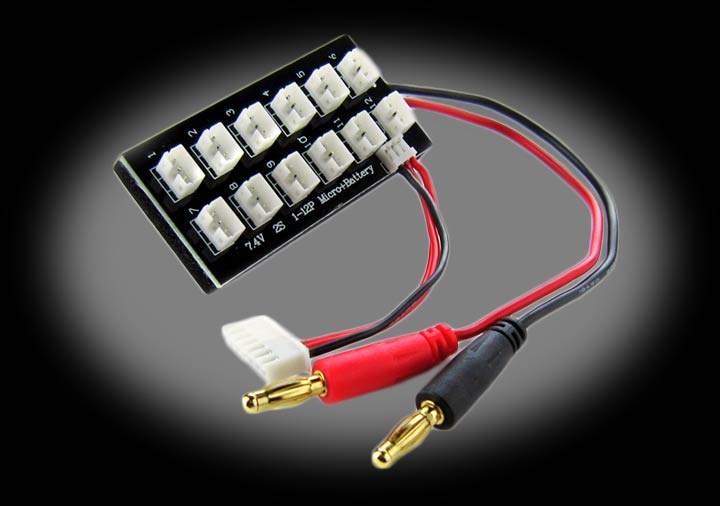

0-PRBRD-UMX Paraboard - Parallel Charging Board for UMX Batteries <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This new paraboard allows you to charge up to twelve lipos with UMX-style connectors at once. Because it charges in parallel, you can charge as few as one or as many as twelve batteries of varying capacities at the same time.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">How to use it<br />
Simply connect the banana plugs and JST-XH balance leads to your 6S lipo charger, plug in the batteries you'd like to charge to the paraboard, program your charger and charge!</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The paraboard allows you to connect up to 12 batteries in parallel so that you can charge them as a single larger mA two-cell battery (i.e. 2s12p). Battery packs must be of the same cell count (only charge 2S with 2S, 3S with 3S, etc.) and battery voltages must be within 0.1V per cell (0.1V for 1S, 0.2V for 2S, etc.) of all other batteries connected to the Paraboard at the same time. Use a Cell Spy or similar voltage tester to check the voltage of each cell before connecting to the Paraboard.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Calculate your charge rate by adding together the mAh of all the batteries you intend to charge. To charge your batteries at a 1C rate, divide your combined mAh by 1,000 and this will tell you what your amperage setting should be. e.x. (6) 7.4V 300mAh batteries would be: (6 * 300) = 1800 / 1000 = 1.8A</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum charge rate = 10A</font></p>

Paraboard - Parallel Charging Board for UMX Batteries
This new paraboard allows you to charge up to twelve lipos with UMX-style connectors at once.

$17.99
Robot MarketPlace - Paraboard - Parallel Charging Board for UMX Batteries

Batteries
    LiPoly Accessories


Click photo to enlarge.

Paraboard - Parallel Charging Board for UMX Batteries
Part# 0-PRBRD-UMX
