0-PRBRD-MCPXMCX Paraboard - Parallel Charging Board for Blade mCP X, mCX, mSR <p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">This new CSRC paraboard supports both mCP X and mCX/mSR/Proto X connectors and allows you to charge up to twelve batteries at the same time! Because it charges in parallel, you can charge as few as one or as many as twelve batteries of varying capacities at once.</font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Also great for batteries used in the Parkzone Vapor/Night Vapor, P-51, Ember, T-28 Trojan, Sukhoi Su-26, Spitfire, Stryker, Pole Cat, Corsair, as well as Blade Scout and Nano CPX.</font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">How to use it<br />
The paraboard allows you to connect up to twelve batteries in parallel so that you can charge them as a single larger mA single cell battery (i.e. 1s6p). Battery packs must be of the same cell count (only charge 2S with 2S, 3S with 3S, etc.) and battery voltages must be within 0.1V per cell (0.1V for 1S, 0.2V for 2S, etc.) of all other batteries connected to the Paraboard at the same time. Use a Cell Spy or similar voltage tester to check the voltage of each cell before connecting to the Paraboard.</font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Calculate your charge rate by adding together the mAh of all the batteries you intend to charge. To charge your batteries at a 1C rate, divide your combined mAh by 1,000 and this will tell you what your amperage setting should be. e.x. (6) 7.4V 300mAh batteries would be: (6 * 300) = 1800 / 1000 = 1.8A</font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Max Charge Current: 4.8A</font></p>

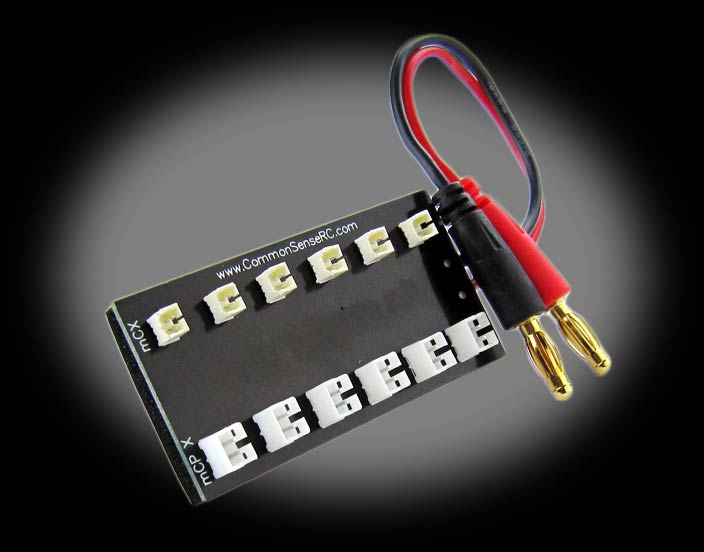

Paraboard - Parallel Charging Board for Blade mCP X, mCX, mSR
Because it charges in parallel, you can charge as few as one or as many as twelve batteries of varying capacities at once.

$11.99
Robot MarketPlace - Paraboard - Parallel Charging Board for Blade mCP X, mCX, mSR

Batteries
    LiPoly Accessories


Click photo to enlarge.

Paraboard - Parallel Charging Board for Blade mCP X, mCX, mSR
Part# 0-PRBRD-MCPXMCX




Please see this product on the new Robot MarketPlace web site. Click here









Other products you may be interested in:

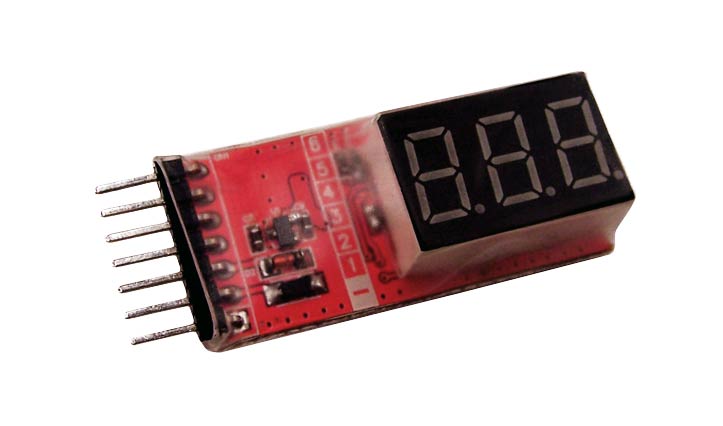

Cell Spy Platinum LiPo Voltage Tester
