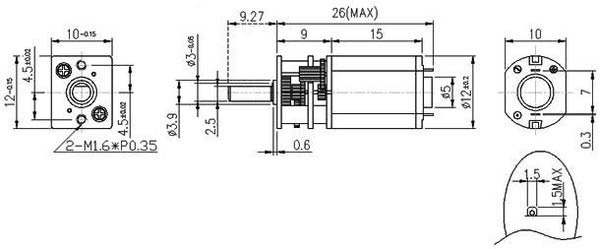

0-PL997 150:1 Micro Metal Gearmotor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This gearmotor is a miniature (0.94" x 0.39" x 0.47"), high-power brushed DC motor with 150:1 metal gearbox, similar to Sanyo's popular 12mm gearmotors. These units have a 0.365"-long, 3 mm-diameter D-shaped output shaft.</font></p>
<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td width="34%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear
Ratio</font></td>
<td width="33%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150:1</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded
RPM (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">200</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded
Current (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">70 mA</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
Current (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1600 mA</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
Torque (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">45 oz-in </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10mm</font></td>
</tr> <tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft
Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9.27mm length; 3mm diameter</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.34oz</font></td>
</tr>
</table>

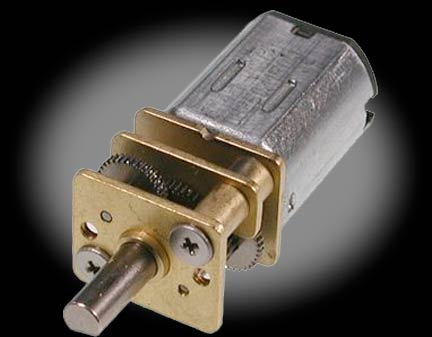

150:1 Micro Metal Gearmotor
Small, strong, and torquey, this motor features a brass faceplate to give you quality at a great value.

$15.99
Robot MarketPlace - 150:1 Micro Metal Gearmotor

Motors
    Motors - Antweight


Click photo to enlarge.

150:1 Micro Metal Gearmotor
Part# 0-PL997




Please see this product on the new Robot MarketPlace web site. Click here
