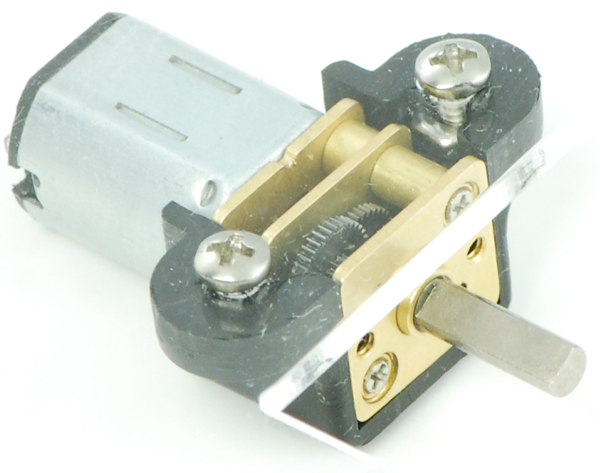

This compact bracket enables convenient mounting of popular, Sanyo-style miniature
metal gearmotors. The plastic bracket encloses the otherwise exposed gears, and
the mounting tabs capture the nuts for easy installation.

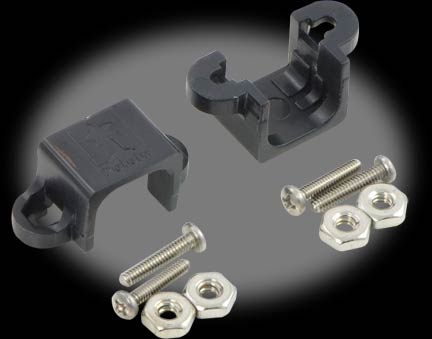

Four #2-56 7/16" screws
and four nuts are included with the two bracket.
Note: These brackets have mounting holes that are very close to the output
shaft end of the motor, which could cause mounting difficulties if your wheels
have recessed hubs. For such applications we recommend the extended
version of
this bracket.
NOTE: This will NOT fit the 1000:1 Micro geared motor.
