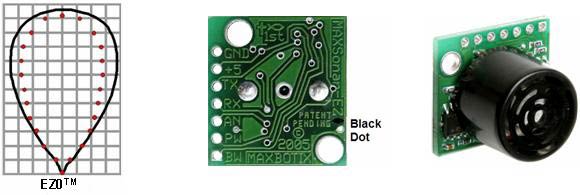

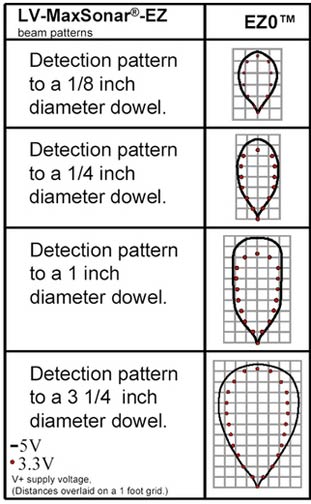

0-PL723 Maxbotix LV-MaxSonar-EZ0 Sonar Range Finder MB1000 <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Maxbotics LV-MaxSonar-EZ family of sonar range finders offers very short- to long-range detection and ranging in an incredibly small package with ultra-low power consumption. The LV-MaxSonar-EZ detects objects from 0 to 6.45 meters (21.2 feet) and provides sonar range information beyond 15 cm (6") with a resolution of 2.5 cm resolution (1 in). Objects between 0 and 15 cm range as 15 cm. The sensor provides three output interfaces, all of which are active simultaneously: digital pulse width output, analog voltage output, and asynchronous serial digital output. The LV-MaxSonar versions have progressively narrower beams.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resolution</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5cm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.45 meters </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Minimum Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0 (objects closer than 15in. are reported as 15in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sampling Rate </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20 Hz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Baud</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9600</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Minimum Operating Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Operating Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.5V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Supply Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.870 x 0.786 x 0.645 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.15oz.</font></td>
</tr>
</table>
