Robot MarketPlace - Orangutan Robot Controller mega168

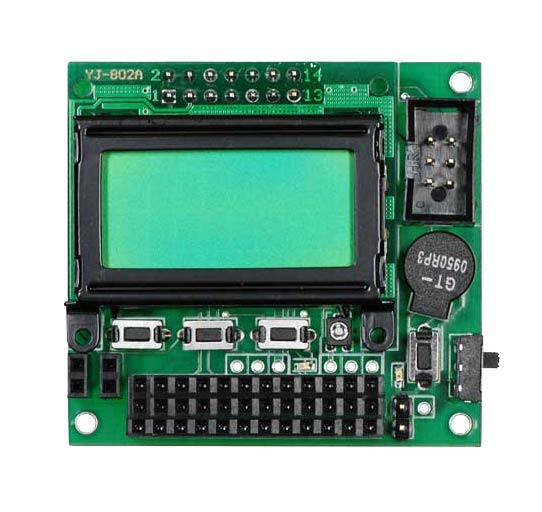

The Orangutan robot controller is a complete control solution for small robots. It includes an 8-character x 2-line liquid crystal display, two bi-directional motor ports, a buzzer, three pushbuttons, and up to 12 user I/O lines, yet the compact module measures only 2.00" x 1.85" and weighs less than 1 ounce. Because of the complete feature set, very few additional components (such as sensors or motors) need to be added to complete the electronic portion of a small robot. The small package allows for greater flexibility in incorporating the electronics into the mechanical design of a robot.

The Orangutan is based on Atmel's ATmega168 AVR microcontroller, which features 16 Kbytes of flash program memory, 1024 bytes of SRAM, and 512 bytes of EEPROM. Up to 8 channels of 10-bit analog-to-digital conversion are also available. Because the user has direct access to the microcontroller, any development software for Atmel's AVR microcontrollers, including Atmel's free AVR Studio and the WinAVR GCC C/C++ compiler, is compatible with the Orangutan. An in-circuit programmer, such as our USB AVR programmer, is required for programming the Orangutan.

The Orangutan input voltage is 5-10 V, making it well-suited for use with small DC motors and 5- to 8-cell NiCd or NiMH battery packs. The motor driver can supply up to a maximum of 1 A per motor channel, subject to power dissipation requirements. Total power consumption (with motors and buzzer off) is under 15 mA.

Features
Overall unit dimensions: 2.00" x 1.85"
Input voltage: 5-10 V
2 bidirectional motor ports connected to LB1836M motor driver (1 A maximum per channel)
Programmable 8 MHz Atmel ATmega168 AVR microcontroller (16 kB flash, 1 kB SRAM, 512 bytes EEPROM)
12 user I/O lines, 10 of which can be used for digital I/O and 8 of which can be used as analog input channels
8-character x 2-line LCD
Buzzer
3 user pushbutton switches
1 user LED
User potentiometer tied to ADC7

Specs
Processor	ATmega168 @ 8 MHz
RAM Size	1024 bytes
Motor Driver	LB1836M
Motor Channels	2
User I/O Lines	12 (10 may be used as digital I/Os, and 8 may be used as analog inputs)
Max Current on a Single I/O	40 mA
Minimum Operating Voltage	5V
Maximum Operating Voltage	10V
Continuous Output Current per Channel	0.5A
Peak Output Current per Channel	1A
Reverse Voltage Protection?	Yes
External Programmer Required?	Yes
LCD Included?	Yes
Size	2.00 x 1.85in.
