1000:1 Micro Geared Motor
This miniature, high-torque gearmotor has a 1000:1 gearbox, making it a great choice for applications requiring fine control at very low speeds.

$22.95

Motors
Small Geared Motors

Click photo to enlarge.

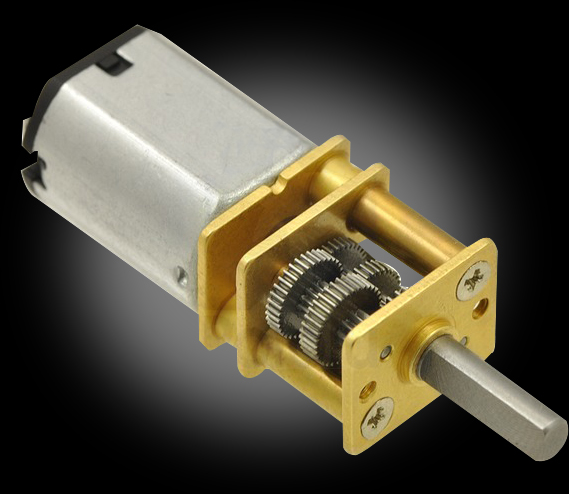

1000:1 Micro Geared Motor
Part# 0-PL1596

Please see this product on the new Robot MarketPlace web site. Click here

This miniature, high-torque gearmotor has a 1000:1 gearbox, making it a great choice for applications requiring fine control at very low speeds. These units have a 0.365"-long, 3 mm-diameter D-shaped output shaft.

Note: Because of the high gear ratio, these motors can generate enough torque to damage themselves, so you should avoid stalling them.
Also note: this gearbox is longer than that of most 12mm micro gearmotors, so our micro metal gearmotor brackets will not fit this motor.

Specifications at 6V:

No-Load Speed:	14 rpm
No-Load Current:	40 mA
Stall Torque:	70 oz-in
Stall Current:	360 mA
Dimensions:	27.5 x 10 x 12 mm
Weight:	0.37 oz (10.5 g)
Shaft Diameter:	3 mm
