0-PL1248 SpringRC SM-S4303R Continuous Rotation Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The SM-S4303R is a standard-sized servo that has been built by SpringRC specifically for continuous rotation, making it an easy way to get your robot moving. It features two ball bearings on the output shaft for reduced friction, and it offers easy access to the rest-point adjustment potentiometer. The servo can be controlled using a direct connection to a single microcontroller I/O line without any additional electronics, which makes it a great actuator for beginner robotics projects.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The SM-S4303R continuous rotation servo converts standard RC servo position pulses into continuous rotation speed. The default rest point is 1.5 ms, but this can be adjusted by using a small slotted screwdriver to turn the middle-point positioner. Pulse widths above the rest point result in counterclockwise rotation, with speed increasing as the pulse width increases; pulse widths below the rest point result in clockwise rotation, with speed increasing as the pulse width decreases. Note that this is the reverse of what is described in the datasheet.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Speed at 4.8V: 0.16 sec/60&deg;<br />
Speed at 6V: 0.14 sec/60&deg;<br />
Stall Torque at 4.8V: 45.8 oz-in<br />
Stall Torque at 6V: 66.7 oz-in<br />
Lead Length: 11 in.<br />

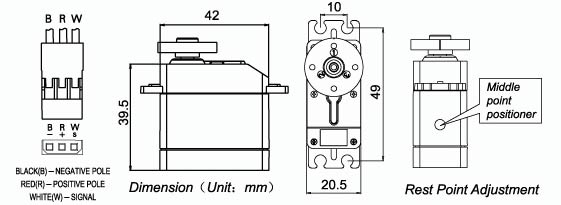

Dimensions: 39.5 x 20.5 x 42mm<br />
Weight: 44g</font></p>

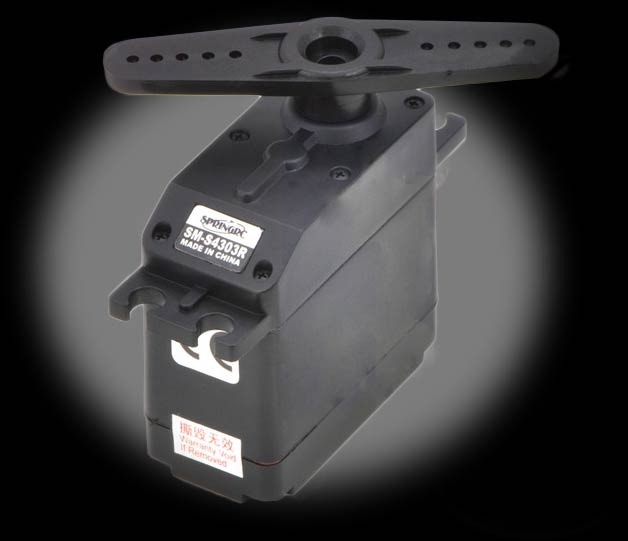

SpringRC SM-S4303R Continuous Rotation Servo
The SM-S4303R is a standard-sized servo that has been built by SpringRC specifically for continuous rotation, making it an easy way to get your robot moving.

$12.95
Robot MarketPlace - SpringRC SM-S4303R Continuous Rotation Servo

RC Gear
    Servos - Robot


Click photo to enlarge.

SpringRC SM-S4303R Continuous Rotation Servo
Part# 0-PL1248
