0-PIRGB1 Piranha Geared Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
Piranha gearmotor is a small, lightweight motor specifically
designed for direct-to-wheel drive systems on 12-15 pound robots. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
strong, lightweight and reliable gearboxes are priced to fit your
budget, and come fully assembled with a 550 Johnson motor. The gearbox
is compatible with all 540 and 550 sized motors, so if you want,
you could use the same gearbox with another motor of your choice!
The
1/2&quot; diameter output shaft is supported by dual ABEC-1 ball bearings
and is keyed with a 1/8&quot; keyway, ready for your wheel, sprocket,
pulley, etc.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting
holes are pre-drilled on top and bottom of the gearbox with 8-32
thread.</font></p>
<table width="300" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">38
rpm/v (456rpm @12V) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">12-18 Volts</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gear
ratio </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">36:1</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.5
lbs (as pictured, with motor) </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Output
Shaft</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1/2&quot; with
1/8&quot; keyway; 1.5&quot;. long</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.6&quot;</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.6&quot;</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">6.4</font><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">&quot; (overall
with motor)</font></td>
</tr>
<tr>
<td rowspan="3"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Mount</font></td>
<td rowspan="3"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">8-32
holes 1.25&quot; x 1&quot; </font></td>
</tr>
<tr> </tr>
<tr> </tr>
</table>

Piranha Geared Motor
The Piranha gearmotor is a small, lightweight motor specifically designed for direct-to-wheel drive systems on 12-15 pound robots.
$93.99
Robot MarketPlace - Piranha Geared Motor
CLOSE X
Loading Image...
Motors
    Motors - Geared


Click photo to enlarge.

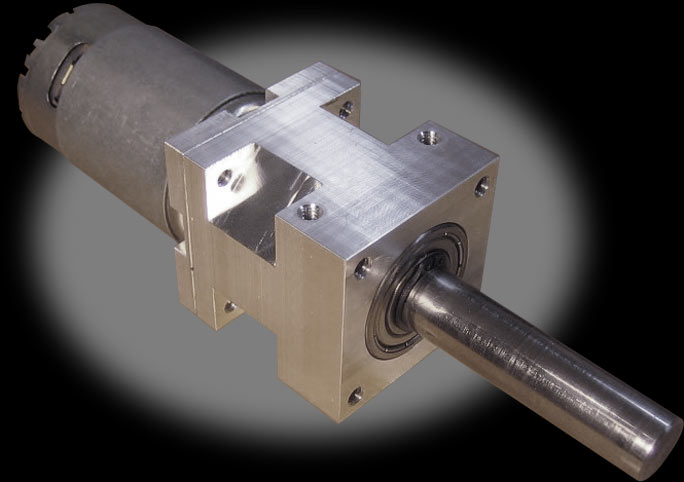

Piranha Geared Motor
Part# 0-PIRGB1

No reviews yet.

$93.99
This Product Has Been Discontinued
Stock Status: Removed





General Product Information
Other Documentation
Reviews & Comments

The Piranha gearmotor is a small, lightweight motor specifically designed for direct-to-wheel drive systems on 12-15 pound robots.

These strong, lightweight and reliable gearboxes are priced to fit your budget, and come fully assembled with a 550 Johnson motor. The gearbox is compatible with all 540 and 550 sized motors, so if you want, you could use the same gearbox with another motor of your choice! The 1/2" diameter output shaft is supported by dual ABEC-1 ball bearings and is keyed with a 1/8" keyway, ready for your wheel, sprocket, pulley, etc.

Mounting holes are pre-drilled on top and bottom of the gearbox with 8-32 thread.

Speed 38 rpm/v (456rpm @12V)
Voltage 12-18 Volts
Gear ratio 36:1
Weight 1.5 lbs (as pictured, with motor)
Output Shaft 1/2" with 1/8" keyway; 1.5". long
Height 1.6"
Width 1.6"
Length 6.4" (overall with motor)
Mount 8-32 holes 1.25" x 1"
