0-PHXHV85 Phoenix HV-85 Brushless Speed Controller <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Phoenix HV-85 has the power handling capability for just about anything you
can put into the sky! The Phoenix HV-85 comes with a total ability of over
4,000 watts (that's 5 horsepower!). Compare the price, size, and capability
of the Phoenix HV-85 to the competition and you'll understand the Castle
Creations advantage. </font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Key Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>


-Safe &quot;Power On&quot; <br>
-Low torque &quot;Soft Start&quot; protects gear boxes and belt drives from shock <br>
-Tough surface mount construction <br>
-Smooth reverse exponential throttle<br>
-Audible Arming Signal <br>
-Self-calibrating endpoints: maximizes usable stick travel<br>
-Simple setup - no complicated switches or wiring<br>
-Auto Motor cut-off with reset<br>
-Auto shut-down when signal is lost<br>
-Microprocessor controlled </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes - switch two wires</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">85A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50V max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.8 x 1.55 x 1.0 in. (71.12 x 39.37 x 25.4 mm) </font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.2 oz. </font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Full On Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0015 ohms </font></td>
</tr>
</table>

Phoenix HV-85 Brushless Speed Controller
The Phoenix HV-85 is right at home in all quarter and giant scale fixed wing aircraft, and large helicopters alike.

$178.46
Robot MarketPlace - Phoenix HV-85 Brushless Speed Controller

Electronics
    Brushless Motor Controllers

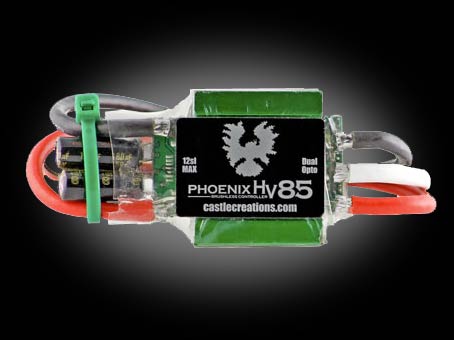

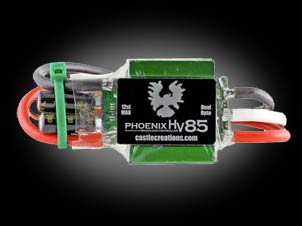

Click photo to enlarge.

Phoenix HV-85 Brushless Speed Controller
Part# 0-PHXHV85


No reviews yet.

Retail: $209.95

Our Price:

$178.46

This Product Has Been Discontinued
Stock Status: Removed
