0-PHX80 Phoenix 80 Brushless Speed Controller <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Phoenix-80 is the ultimate high power sensroless control with a whopping
120-amp surge rating! Despite its high current capability the Phoenix-80
is still a compact, lightweight alternative to other controls on the market.
At a mere 2.1 ounces (60g), with full length wires, the controller is still
packed with features. It comes with the full range of Phoenix programming
options including adjustable switching rate, programmable brake and several
timing models for the ultimate in competition controllers. Programming is
a snap using the on-board LED and your throttle stick - no special equipment
is needed. </font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Key Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
-Battery Eliminator Circuit (BEC) eliminates receiver battery <br>

-Safe &quot;Power On&quot; <br>
-Low torque &quot;Soft Start&quot; protects gear boxes and belt drives from shock <br>
-Tough surface mount construction <br>
-Smooth reverse exponential throttle<br>
-Audible Arming Signal <br>
-Self-calibrating endpoints: maximizes usable stick travel<br>
-Simple setup - no complicated switches or wiring </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">25.2V max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.05 x 2.65 x 0.45 in. </font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.1 oz. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.6V max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Full On Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.001 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells with BEC </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3S LiPo; 12S NiMH/NiCad </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells without BEC </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6S LiPo; 20S NiMH/NiCad </font></td>
</tr>
</table>

Phoenix 80 Brushless Speed Controller
Specially designed for LMR competition gliders, F5D pylon racers, F5B competition sailplanes, and large helicopters. Use it in any very high-power brushless system.

$135.90
Robot MarketPlace - Phoenix 80 Brushless Speed Controller

Electronics
    Brushless Motor Controllers

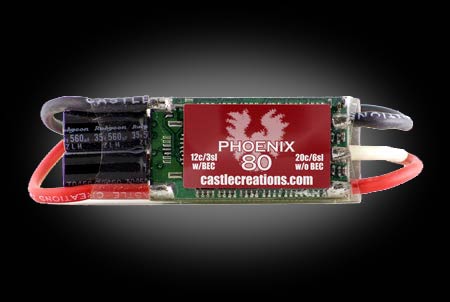

Click photo to enlarge.

Phoenix 80 Brushless Speed Controller
Part# 0-PHX80


No reviews yet.

Retail: $159.95

Our Price:

$135.90

This Product Has Been Discontinued
Stock Status: Removed
