0-PHX60 Phoenix 60 Brushless Speed Controller <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">For higher power applications, the Phoenix-60 is an excellent speed control choice.
The Phoenix line offers greater felxibility by providing an unprecedented
variety of programmable features. These optins allow it to be used in nearly
any application suitable for its current rating. </font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Key Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
-Battery Eliminator Circuit (BEC) eliminates receiver battery <br>

-Safe &quot;Power On&quot; <br>
-Low torque &quot;Soft Start&quot; protects gear boxes and belt drives from shock <br>
-Tough surface mount construction <br>
-Audible Arming Signal <br>
-Self-calibrating endpoints: maximizes usable stick travel </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">60A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">25.2V max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.05 x 2.35 x 0.45 in. </font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 oz. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.6V max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Full On Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0012 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells with BEC </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3S LiPo; 12S NiMH/NiCad </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells without BEC </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6S LiPo; 20S NiMH/NiCad </font></td>
</tr>
</table>

Phoenix 60 Brushless Speed Controller
The Phoenix-60 can be set for helicopter installations (including those with collective pitch) or airplanes. Competition flyers will benefit from the Phoenix-60's adjustable switching rate to insure optimum efficiency in their models.

$118.99
Robot MarketPlace - Phoenix 60 Brushless Speed Controller
CLOSE X
Loading Image...

Electronics
    Brushless Motor Controllers

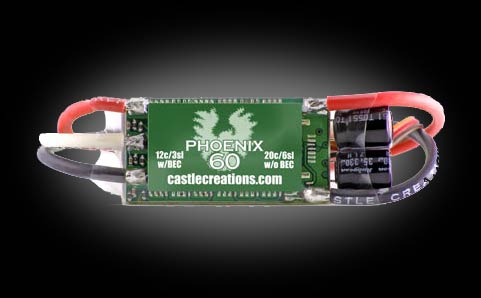

Click photo to enlarge.

Phoenix 60 Brushless Speed Controller
Part# 0-PHX60


No reviews yet.

Retail: $139.99

Our Price:

$118.99

This Product Has Been Discontinued
Stock Status: Removed






General Product Information
Other Documentation
Reviews & Comments

For higher power applications, the Phoenix-60 is an excellent speed control choice. The Phoenix line offers greater felxibility by providing an unprecedented variety of programmable features. These optins allow it to be used in nearly any application suitable for its current rating.

Key Features
-Battery Eliminator Circuit (BEC) eliminates receiver battery
-Safe "Power On"
-Low torque "Soft Start" protects gear boxes and belt drives from shock
-Tough surface mount construction
-Audible Arming Signal
-Self-calibrating endpoints: maximizes usable stick travel

Specs
Reversible Yes
Brake Yes
Continuous Current 60A
Input Voltage 25.2V max
Dimensions 1.05 x 2.35 x 0.45 in.
Weight 2 oz.
BEC Voltage 12.6V max
Full On Resistance 0.0012 ohms
Cells with BEC 3S LiPo; 12S NiMH/NiCad
Cells without BEC 6S LiPo; 20S NiMH/NiCad
