0-PHX35 Phoenix 35 Brushless Speed Controller <p align="left"><font color="262626" size="2" face="Arial, Helvetica, sans-serif">At 35 amps of power capacity, the Phoenix-35 is suited for medium current installations,
but is still extremely small and light. </font></p>
<p align="left"><font color="262626" size="2" face="Arial, Helvetica, sans-serif">The
Phoenix-35 gives you the flexibility you've come to expect from Castle Creations
controllers. With a total of 7 user-programmable features, this speed controller
has it all! </font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Key Features</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br>
-Designed for use with brushless motors<br>
-Good choice for park flyer applications<br>
-Low-voltage cutoff - 4V, 5V, 6V, 7.2V, 9V, 12V<br>
-Over-current Protection - 5 settings<br>
-Brake type - 5 settings<br>
-Throttle range - fixed/self-adjusting/governor<br>
-Timing Advance - 3 choices<br>
-Cutoff type - hard or soft<br>
-Switching frequency - 3 choices</font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br>
Forward: Yes<br>
Brake: Yes<br>
Continuous Maximum Current: 35A<br>
Input Voltage: 19.2V max<br>
Dimensions: 1.72 x 0.95 x 0.4"<br>
Weight: 0.9 oz<br>
BEC Voltage: 12.6V max<br>
Full On Resistance: 0.0045 ohms<br>
Cells w/BEC: 3S Max(LiPo), 12 Max (NiMh, NiCd)<br>
Cells w/o BEC: 5S Max(LiPo), 16 Max (NiMh, NiCd)</font></p>

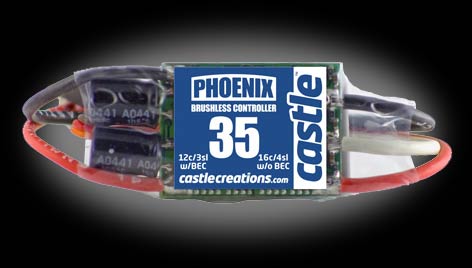

Phoenix 35 Brushless Speed Controller
The Phoenix-35 gives you the flexibility you've come to expect from Castle Creations controllers.

$84.96
Robot MarketPlace - Phoenix 35 Brushless Speed Controller

Electronics
    Brushless Motor Controllers


Click photo to enlarge.

Phoenix 35 Brushless Speed Controller
Part# 0-PHX35




Please see this product on the new Robot MarketPlace web site. Click here









Other products you may be interested in:

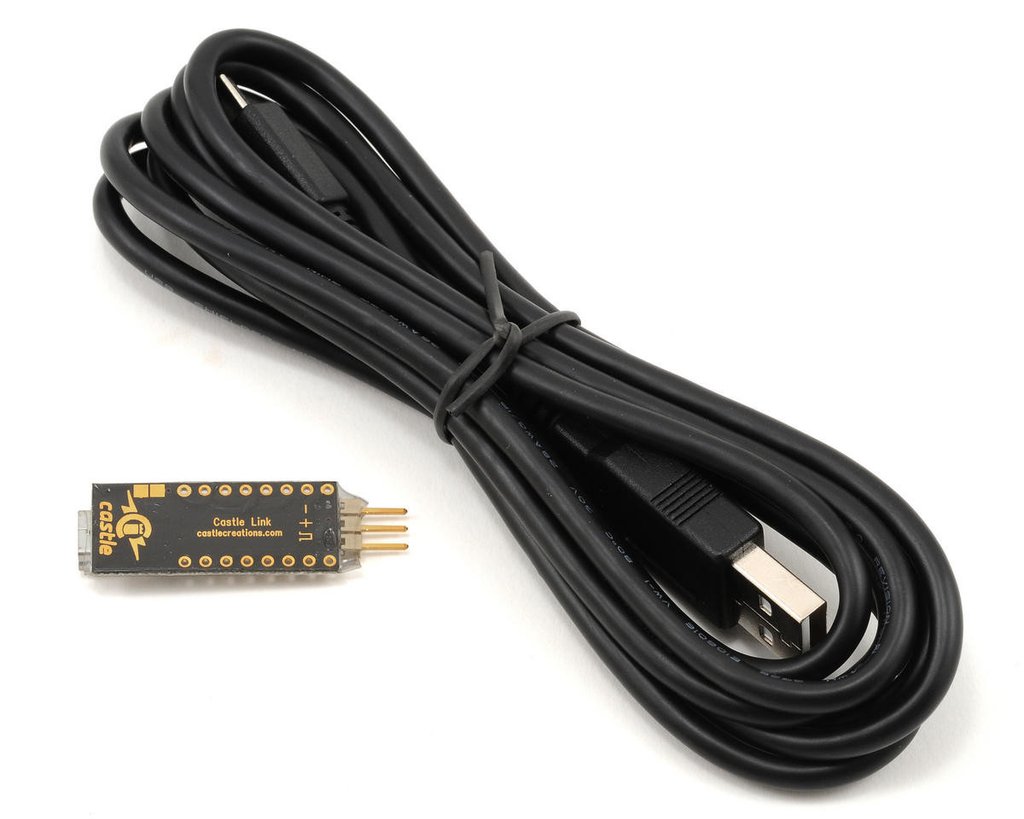

Phoenix Castle Link USB Programming Adapter
