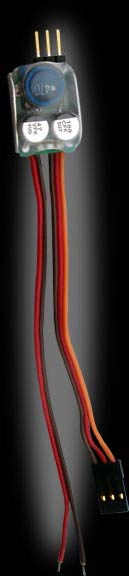

0-PBEC1 Park BEC <p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">The ParkBEC is the smallest and lightest switch-mode BEC on the market. ParkBEC
powers your receiver and servos much more efficiently than a standard BEC.
As many as six sub-micro servos can be powered without worrying about an overheating
BEC. ParkBEC works great up to very high voltages, and is especially suited
for running parkflyer type aircraft. ParkBEC is often a necessity at 4s and
above. <br>
</font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Many people
don't realize that their ESC's BEC rating is misleading. With the linear
BEC built into most speed controls, the current rating decreases as pack
voltage increases. For example, several popular 25A ESCs with &quot;3A&quot; BECs
are only capable of supplying 0.5A when running from a 3s pack. Because it
is an efficient switching regulator, ParkBEC can supply its full rated current
of 1.25A all the way up to 8s.</font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">ParkBEC was carefully designed to not create radio interference. It uses a
shielded inductor and optimized layout, so you can use it without fear of glitching. </font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">The ParkBEC installs between your ESC and receiver, so you don't have to modify
your speed control to disable its internal BEC. Just plug ParkBEC in! </font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">For best results, ensure that the ParkBEC is installed at least 2 inches away
from your receiver and antenna. </font></p>
<p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">ParkBEC cannot power multiple digital servos.</font></p>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Input
voltage</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">6V
to 33.6V</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Output
Current</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">1.25A
continuous</font></td>
</tr>

<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Output
Voltage</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">5V</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">37mm
x 15.5mm x 14mm</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">0.22
oz (6.2g) with wires/0.14 oz (4.1g) without wires</font></td>
</tr>
</table>
