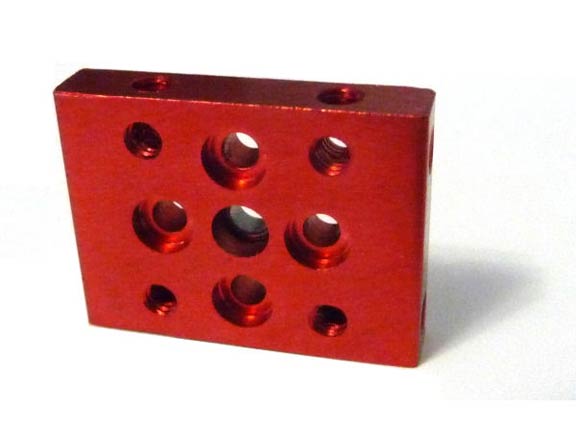

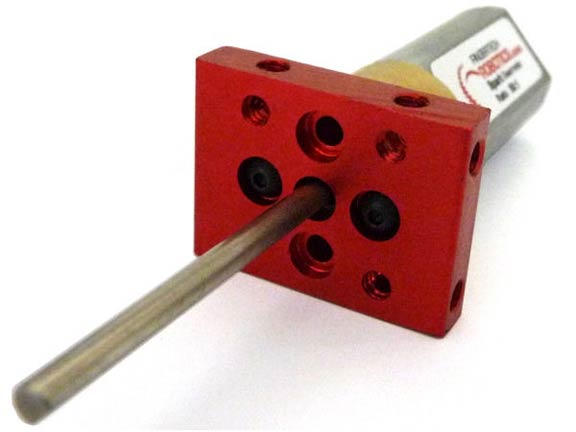

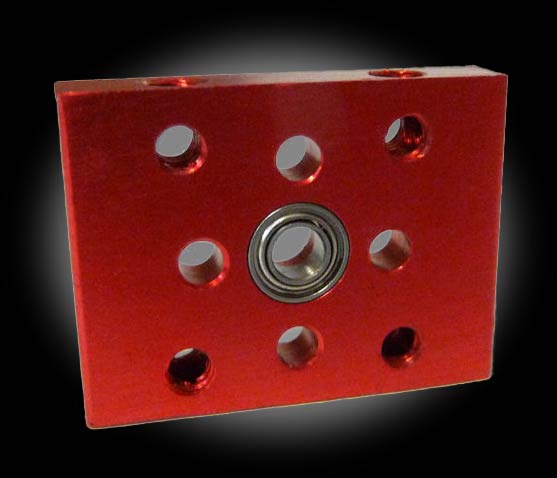

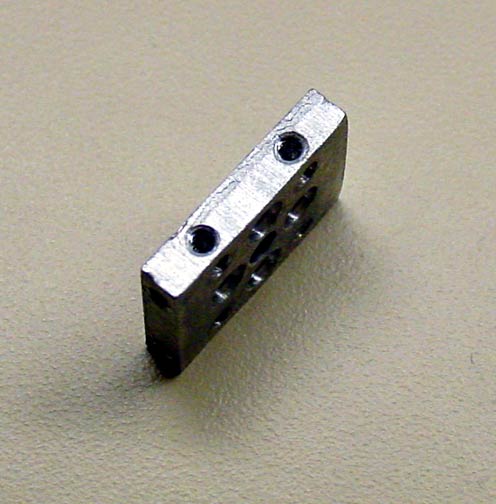

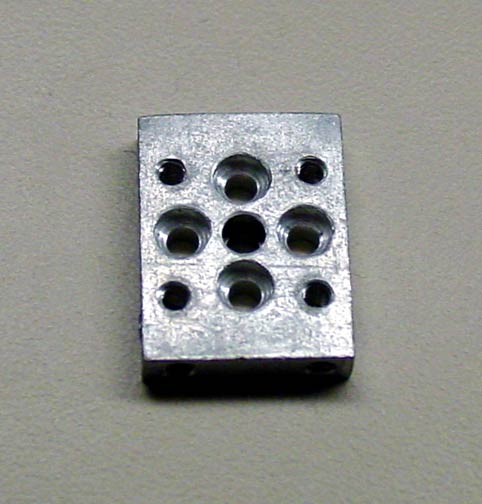

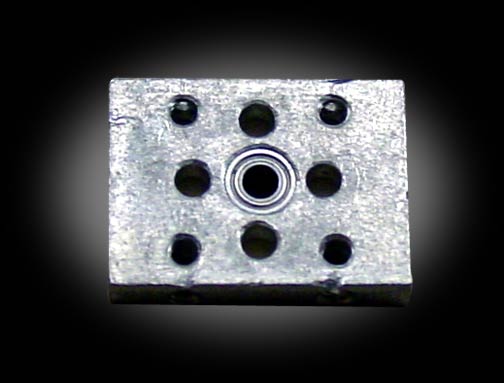

0-PB-M0031-BB Bearing Block, 1 x .75 inch, 3mm, with Ball Bearing <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This block can be used as a motor mount for the 16mm gearmotors or as a bearing block for a 3mm shaft. The bearing works will with the Spark Motors by aligning the mounting holes to the Spark mounting holes, and offers additional shaft support.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.75in. (19.1mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1in. (25.4mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thickness</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.19in. (4.8mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.16 oz (4.5g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tapped Holes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4-40</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Aluminum</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ball Bearing </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing Outer Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing Inner Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing Thickness </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2mm</font></td>
</tr>
</table>

Bearing Block, 1 x .75 inch, 3mm, with Ball Bearing
This block can be used as a motor mount for the 16mm gearmotors or as a bearing block for a 3mm shaft.

$4.50
Robot MarketPlace - Bearing Block, 1 x .75 inch, 3mm, with Ball Bearing

Mechanical and Drive
    Motor Mounts


Click photo to enlarge.

Bearing Block, 1 x .75 inch, 3mm, with Ball Bearing
Part# 0-PB-M0031-BB
