0-PAZ36123000-139K 139:1 Planetary Gearmotor with Extended Back Shaft <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">

This is a 36mm motor with an extended back shaft for mounting an encoder. The 139:1 planetary gearbox has all metal gears, and provides very slow rotation and maximum torque.
<br /><br />
<strong>Key Specs:</strong></font></p>
<table width="350" border="1">
<tr>
<td width="155"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal Voltage</font></td>
<td width="156"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12 V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No-Load RPM</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">21.5 rpm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No-Load Current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.18 A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rated Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20 kg-cm (278 oz-in)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rated Speed (Load)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16 rpm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.3 A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24 kg-cm (333 oz-in)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">36 x 95 mm (1.4 x 3.75 in)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16 oz (453.5 g)</font></td>
</tr>
</table>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />






</font>
</p>

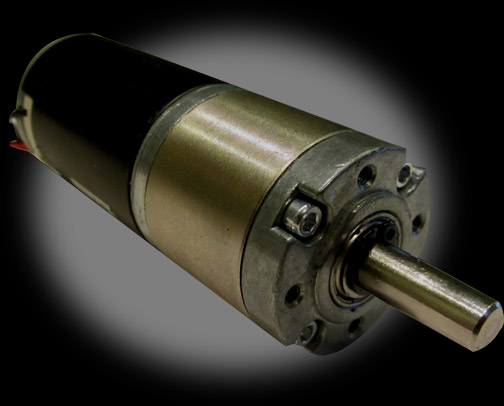

139:1 Planetary Gearmotor with Extended Back Shaft
This 36mm gearmotor has an extended back shaft for mounting an encoder, and a 139:1 planetary gearbox for low speed and high torque.
$52.00
Robot MarketPlace - 139:1 Planetary Gearmotor with Extended Back Shaft

Motors
    Motors - Brushed


Click photo to enlarge.

139:1 Planetary Gearmotor with Extended Back Shaft
Part# 0-PAZ36123000-139K
