0-NOVM1842 Novak Rooster Crawler/55T Motor Combo <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Features-</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Two specific crawling driver profiles that feature zero reverse delay and high-powered drag brakes (or "hill or "hold" brakes)<br>
Built-in LiPo cut-off protection prevents batteries from going below the critical safety voltage level<br>
User replaceable input harness<br>
Heavy duty 6V/5A BEC<br>
Radio priority and polar drive circuitry<br>
High-efficiency heat sink<br>
Water resistant case<br>
Thermal overload protection<br>
<font color="cccccc">Crawler Motor Features-</font><br>
Designed for vehicles requiring precise movement control<br>
High number of turns for excellent torque and long-run times<br>
Dual-ball bearing for smoothness and efficiency<br>
100 percent rebuildable with user-replaceable brushes and springs<br>
Direct-Solder Wiring Tabs for flexible soldering options<br>
Three factory-installed motor capacitors to reduce glitching</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> <br>
Input Voltage: 4-7 NiCd/NiMH cells (1.2V per cell) or 2 LiPo cells<br>
Size: 1.54" x 1.18" (39 x 30mm)<br>
Weight: 2.66oz (75.5g) w/wires; 1.57oz (44.5g) w/o wires<br>
On-Resistance: 0.0014 ohms (forward); 0.0028 ohms (reverse)*<br>
Rated Current: 400A* (forward)<br>
Braking Current: 200A*<br>
BEC: 6.0V/5.0A<br>
Motor Limit 27-turn Brushed (at 6 cells NiMH)<br>
Discrete Steps: 256 Forward; 256 Reverse<br>
Battery Plug: Tamiya type<br>
Drive Profiles: 2<br>
Status LEDs: 2<br>
Voltage Cut-off: 6.25V (LiPo Profiles)<br>
*MOSFET rating at 25°C junction temperature</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Fifty Five Crawler Brushed Motor Specs </font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Number of Turns: 55<br>
Design: Stand-up Brushed<br>
Input Voltage: 4-7 cells (1.2V/cell) or 2S Li-Poly cells<br>
Motor Size: 2.07 x 1.42" (52.7 x 36.1mm)<br>
Shaft Diameter: 0.125" (3.2 mm) [accepts all existing pinion gears]<br>
Bearing: Standard 3/8" x 1/8"<br>
Weight: 6.03 oz. (171g)<br>
Magnet: High-Strengh Ferrite
</font></p>
Two specific crawling driver profiles that feature zero reverse delay and high-powered drag brakes (or "hill or "hold" brakes)<br>
Built-in LiPo cut-off protection prevents batteries from going below the critical safety voltage level<br>
User replaceable input harness<br>
Heavy duty 6V/5A BEC<br>
Radio priority and polar drive circuitry<br>
High-efficiency heat sink<br>
Water resistant case<br>
Thermal overload protection<br>
<font color="cccccc">Crawler Motor Features-</font><br>
Designed for vehicles requiring precise movement control<br>
High number of turns for excellent torque and long-run times<br>
Dual-ball bearing for smoothness and efficiency<br>
100 percent rebuildable with user-replaceable brushes and springs<br>
Direct-Solder Wiring Tabs for flexible soldering options<br>
Three factory-installed motor capacitors to reduce glitching</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> <br>
Input Voltage: 4-7 NiCd/NiMH cells (1.2V per cell) or 2 LiPo cells<br>
Size: 1.54" x 1.18" (39 x 30mm)<br>
Weight: 2.66oz (75.5g) w/wires; 1.57oz (44.5g) w/o wires<br>
On-Resistance: 0.0014 ohms (forward); 0.0028 ohms (reverse)*<br>
Rated Current: 400A* (forward)<br>
Braking Current: 200A*<br>
BEC: 6.0V/5.0A<br>
Motor Limit 27-turn Brushed (at 6 cells NiMH)<br>
Discrete Steps: 256 Forward; 256 Reverse<br>
Battery Plug: Tamiya type<br>
Drive Profiles: 2<br>
Status LEDs: 2<br>
Voltage Cut-off: 6.25V (LiPo Profiles)<br>
*MOSFET rating at 25°C junction temperature</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Fifty Five Crawler Brushed Motor Specs </font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Number of Turns: 55<br>
Design: Stand-up Brushed<br>
Input Voltage: 4-7 cells (1.2V/cell) or 2S Li-Poly cells<br>
Motor Size: 2.07 x 1.42" (52.7 x 36.1mm)<br>
Shaft Diameter: 0.125" (3.2 mm) [accepts all existing pinion gears]<br>
Bearing: Standard 3/8" x 1/8"<br>
Weight: 6.03 oz. (171g)<br>
Magnet: High-Strengh Ferrite
</font></p>
 |

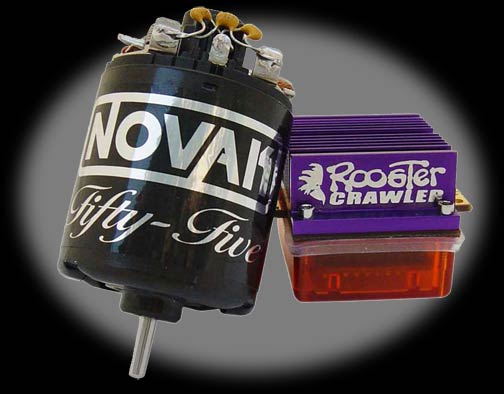

Novak Rooster Crawler/55T Motor Combo |
$109.99 |
