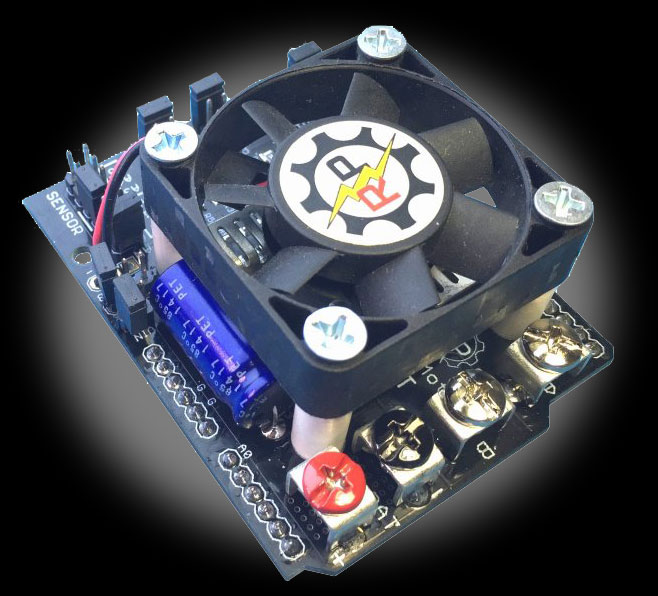

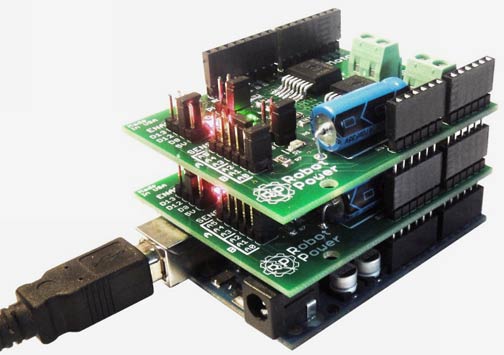

0-MMGT MegaMoto GT Motor Control Shield for Arduino <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Robot Power MegaMoto GT™ is a low-cost robust H-bridge &quot;shield&quot; for the Arduino™ and hardware compatible base units. The built-in cooling fan and heatsinks allow the MegaMoto GT to handle high current loads without overheating. Up to 50A (5 sec) of current may be controlled by the MegaMoto GT at 24V. This is over 1200W of power!</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The GT is ideal for Arduino users who want to control high current loads efficiently for robotics, scooters &amp; Segways, industrial controls and many other applications by using their familiar development environment and without messy, unreliable &quot;lash up&quot; type connections to discrete motor controls.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The MegaMoto GT is a dual half-bridge circuit that can be configured either has a full H-bridge or as two independent half-bridge circuits. This allows a single MegaMoto GT to drive one motor with full variable-speed control both forward and reverse. It also allows two independent motors to be controlled in a uni-directional fashion by connecting one side of each motor to the battery negative and the other motor lead to one of the MegaMoto GT outputs.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Jumpers are used to select which Arduino signals drive the Enable and PWM inputs on each MegaMoto. This flexibility allows the MegaMoto GT to play nice with other shields which might require the use of certain pins.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Not limited to motors, the MegaMoto GT can control other DC loads such as lights, solenoids, relays, valves, Peltier junction coolers, Hydrogen generators or basically any DC device within the operating voltage and current range.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Supply Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V to 35V (28V max battery rating)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">35A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Burst Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50A+ 5 seconds</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.8 0z</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power MOSFETs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 ea. BTN8982</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.016 Ohm max at 25C </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DC to 20kHz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Logic Interface </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3V - 5V , minimum 2 pins required </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Logic Inputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Jumper select Enable and PWM source</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Sense Outputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.051V per Amp - 2.55V at 50A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Sense Pins </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Jumper select the analog input connected</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current and Temp Limiting </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Built-in to power chips </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Connectors </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 each metal screw terminals for crimp-on &quot;fork&quot; terminalses </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Enclosure</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">None</font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The MegaMoto GT comes to you fully assembled and tested.</font></p>
