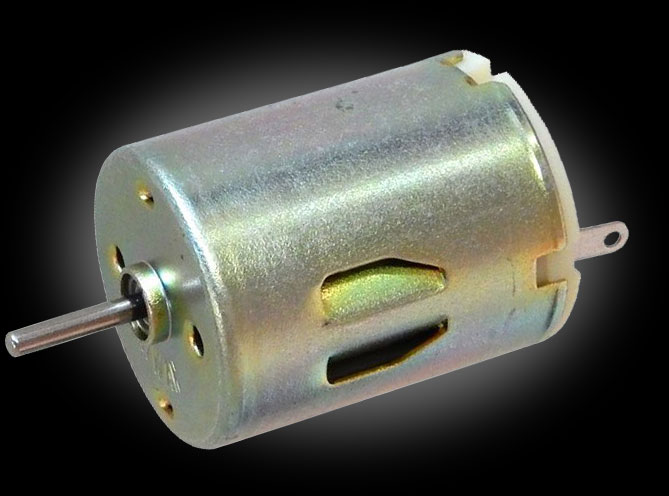

0-MABRE280 Mabuchi 1.5V - 6V DC 280-size Project Motor <p align="left"><font face="Arial, Helvetica, sans-serif" size="2"><font color="00ff66">This is a nice compact yet powerful motor for science projects, robotics, hobbyist projects, and any all-around place you need a 1.5 - 6VDC motor.</font></font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating
Voltage: 1.5-6V DC<br>
Weight: 42g (1.48 oz)<br>
No Load speed: 9200rpm @ 3.0V, 18000rpm @ 6.0V <br>
0.16 amps no load
</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
approx 2amps @ stall<br>
Diameter: 24.2mm<br>
Length: 30.5mm (not counting shaft)<br>
Shaft: 2.0mm diameter, 12mm long<br>
Face-mount holes are 2.3mm, and are spaced 14.0mm apart</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Please click on the Mabuchi project sheet on this page for complete data on this motor.</font></p>
