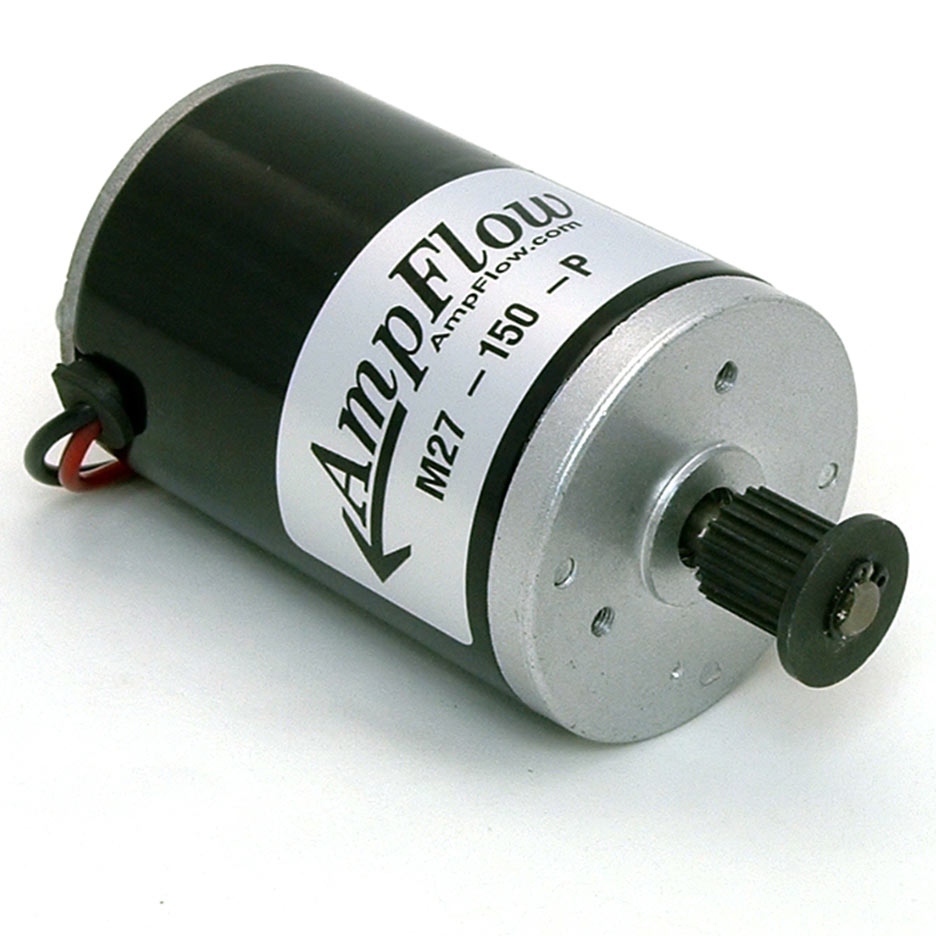

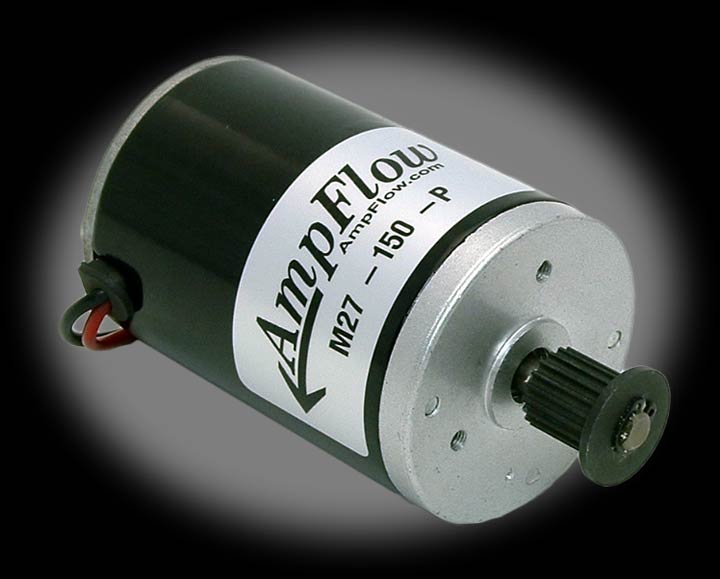

0-M27-150-P AmpFlow M27-150-P Motor
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These standard motors are designed to give good performance and great value.
</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The smaller M27-150 motors have sustained outputs of 150 Watts (0.20 horsepower). They are available with either a sprocket or pulley.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These motors are ideal for cost-sensitive applications including robots, motorized scooters, go karts, and electric bicycles.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Watts - Continuous </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.7 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.9 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">79%</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No-Load RPM @ 24V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3800</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Shaft </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">19-Tooth, 3mm Pitch Pulley</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.0 lb </font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The above specifications are for 24V. The motors can also be used at 12V or 18V. The RPM is proportional to the voltage so running at 12V will result in half the no-load RPM that is shown above for 24V. The lower voltage also reduces the maximum achievable torque by 50%. The motors have also been tested and used at higher voltages resulting in higher RPM, torque, and power. Shorter duty-cycles are recommended for higher voltages to allow the motors time to cool.</font></p>
