0-JRPS8711HV JR DS8711HV High Voltage Ultra Torque Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The 8711HV delivers unheard of power through a new SuperSteel gear train and does it all on a 2S LiPo battery pack--without a regulator! Add its rugged new aluminum case, high voltage motor, legendary JR quality, and true, zero-deadband precision--plus its blistering, 0.12 second speed--and the 8711HV represents a whole new level of big model servo performance.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Rugged new aluminum case<br />
JR® SuperSteel™ gears for high precision, long wear<br />
Exclusive motor designed for high voltage applications<br />
Outstanding precision combined with outlandish performance</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Category</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Standard</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">480 oz-in </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.12 sec/60deg </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.58in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.82in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.57in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.6 oz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bushing or Bearing </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dual Bearing</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Coreless</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.4V (2S LiPo battery) </font></td>
</tr>
</table>

JR DS8711HV High Voltage Ultra Torque Servo
The 8711HV delivers unheard of power through a new SuperSteel gear train and does it all on a 2S LiPo battery pack--without a regulator!

$199.99
Robot MarketPlace - JR DS8711HV High Voltage Ultra Torque Servo

RC Gear
    Servos - Standard

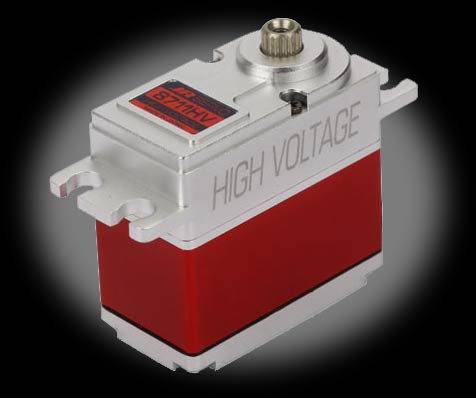

Click photo to enlarge.

JR DS8711HV High Voltage Ultra Torque Servo
Part# 0-JRPS8711HV
