0-JRPS3717HV JR DS3717HV High Voltage High Speed Mini MG Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The JR 3717HV is the latest update to the JR mini servo lineup. Based on the original and successful DS3517MG servo, it has JR’s new high voltage motor allowing it to be used unregulated when using 2-cell LiPo power. With the added performance generated by the new HV motor this servo packs quite a punch. It has many options for use including 500-size helis, many sailplane configurations, and is suitable for the many new jet offerings now available to the market, especially the new and exciting EDF's.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Native 2S lipo operation Eliminates the need for a regulator<br />
High Speed<br />
High performance Excellent power and speed for it's size<br />
Metal gear train<br />
Digital precision for Accuracy and performance</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.30in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.58in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.05in.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1oz.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">56 oz-in. at 7.4V (2S LiPo) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.08 sec/60deg at 7.4V (2S LiPo)</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal</font></td>
</tr>
</table>

JR DS3717HV High Voltage High Speed Mini MG Servo
Based on the original and successful DS3517MG servo, it has JRÕs new high voltage motor allowing it to be used unregulated when using 2-cell LiPo power.

$94.99
Robot MarketPlace - JR DS3717HV High Voltage High Speed Mini MG Servo

RC Gear
    Servos - Mini


Click photo to enlarge.

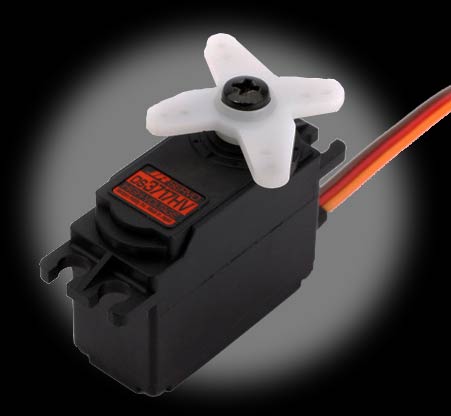

JR DS3717HV High Voltage High Speed Mini MG Servo
Part# 0-JRPS3717HV
