0-JRPRS31075 JR RS310 75Mhz Synthesized 3-Channel Receiver
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">JR's
compact, lightweight RS-310 fits easily into most RC vehicles and
works with all JR &amp; Airtronics radios. It provides crystal-free
convenience and unsurpassed noise rejection, thanks to it's sophisticated
3 Channel FM ABC&amp;W circuitry. Forget about those crystals... Now
you can just dial in the channel you want, anywhere from 61-90 on the
75Mhz ground frequency. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">JR has a unique
signal processing system called ABC&amp;W. ABC&amp;W
stands for Automatic Blocking Circuit with Window. ABC&amp;W systems
have distinct advantages over single or dual conversion receivers.
ABC&amp;W systems create a very small electronic window that looks
for the specific frequency that the receivers crystal is on. Any signal
that is off spec for this window is rejected, and then the allowed
signal is cleaned up, amplified, and re-routed through the window many,
many times till all that is left is the pure signal on the channel
that is coming from your transmitter and then sent on to the servos.
This all takes place without any noticeable delay of response from
your stick movement to the servo. This technology is the reason that
JR can produce single conversion receivers that have fewer components
and weigh less than other single and dual conversion receivers without
the worry about outside interference</font></p>
<table width="80%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Channels</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.49&quot;</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.15&quot;</font></p></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.63&quot;</font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.63
oz </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage
Range </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3.0
- 6.0 VDC </font></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Antenna
Length </font></td>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">20&quot;</font></td>
</tr>
</table>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">*
Note that this is an FM-only receiver, check the rules of the competition
you are attending to see if FM is legal in the robot weight class
you are planning to enter (usually 60lb and under is fine). </font></p>

JR RS310 75Mhz Synthesized 3-Channel Receiver

JR's compact, lightweight RS-310 fits easily into most RC vehicles and works with all JR & Airtronics radios.

$74.99
Robot MarketPlace - JR RS310 75Mhz Synthesized 3-Channel Receiver
CLOSE X
Loading Image...

RC Gear
    RC Receivers - 75MHz

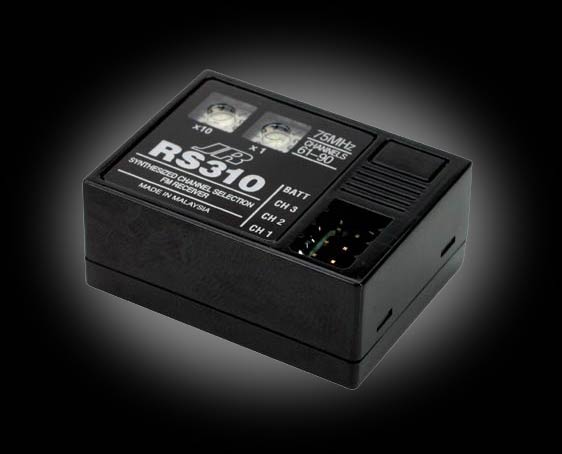

Click photo to enlarge.

JR RS310 75Mhz Synthesized 3-Channel Receiver
Part# 0-JRPRS31075



(average customer rating)

Retail: $129.99

Our Price:

$74.99

This Product Has Been Discontinued
Stock Status: Removed






General Product Information
Reviews & Comments

JR's compact, lightweight RS-310 fits easily into most RC vehicles and works with all JR & Airtronics radios. It provides crystal-free convenience and unsurpassed noise rejection, thanks to it's sophisticated 3 Channel FM ABC&W circuitry. Forget about those crystals... Now you can just dial in the channel you want, anywhere from 61-90 on the 75Mhz ground frequency.

JR has a unique signal processing system called ABC&W. ABC&W stands for Automatic Blocking Circuit with Window. ABC&W systems have distinct advantages over single or dual conversion receivers. ABC&W systems create a very small electronic window that looks for the specific frequency that the receivers crystal is on. Any signal that is off spec for this window is rejected, and then the allowed signal is cleaned up, amplified, and re-routed through the window many, many times till all that is left is the pure signal on the channel that is coming from your transmitter and then sent on to the servos. This all takes place without any noticeable delay of response from your stick movement to the servo. This technology is the reason that JR can produce single conversion receivers that have fewer components and weigh less than other single and dual conversion receivers without the worry about outside interference

Channels 3
Length 1.49"
Width

1.15"

Height 0.63"
Weight 0.63 oz
Voltage Range 3.0 - 6.0 VDC
Antenna Length 20"

* Note that this is an FM-only receiver, check the rules of the competition you are attending to see if FM is legal in the robot weight class you are planning to enter (usually 60lb and under is fine).
