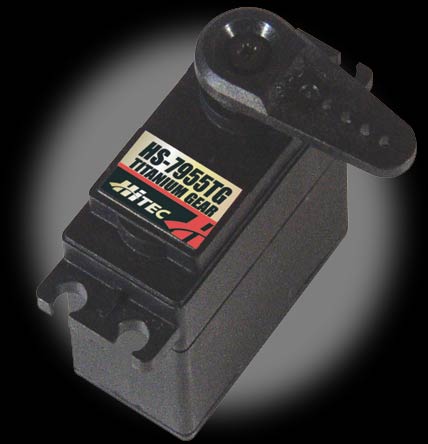

0-HRC37955S Hitec HS-7955TG High Resolution High Torque Digital Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Based on the powerhouse HS-5955TG servo, the HS-7955TG has the added benefit of the G2 second generation programmable digital circuit. This new circuit has twice the resolution of the original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Programmable Features Include</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Dead Band Width<br>
Direction of Rotation<br>
Speed of Rotation (slower)<br>
End Points<br>
Neutral Points<br>
Fail Safe On/Off<br>
Fail Safe Point</font></p>

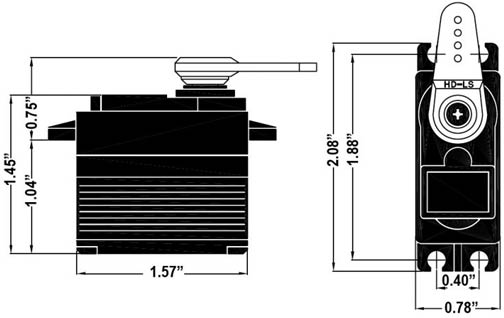

<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Length: 1.57"<br>
Width: 0.78"<br>
Height: 1.45"<br>
Weight: 2.29 ounces<br>
Torque: 250 oz/in at 4.8V; 333 oz/in at 6V<br>
Speed: 0.19sec/60deg at 4.8V with no load; 0.15sec/60deg at 6V with no load<br>
Bearing Type: Dual Ball Bearing<br>
Gear Type: Titanium <br>
Motor Type: Coreless Carbon Brush </font></p>
