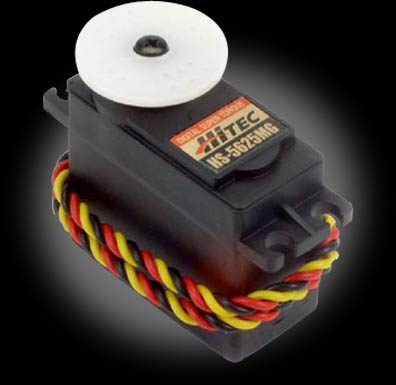

For those applications that require a fast standard size servo, the HS-5625MG
is an excellent choice. With a custom designed programmable digital circuit
and our unique MP/metal gear train technology, the HS-5645MG will deliver powerful
high speed results!

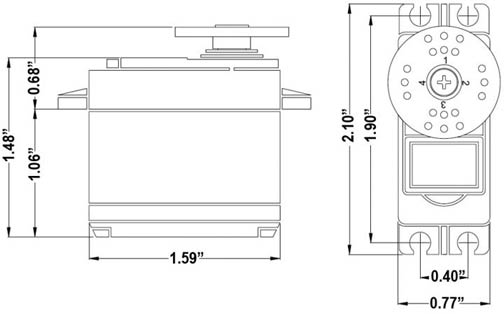

SPECS:
Length: 1.59"
Width: 0.77"
Height: 1.48"
Weight: 2.1 ounces
Torque: 110 oz/in at 4.8V; 131 oz/in at 6V
Speed: 0.18sec/60deg at 4.8V with no load; 0.15sec/60deg at 6V with no load
Bearing Type: Dual Ball Bearing
Gear Type: 3 Metal, 1 Resin
Motor Type: 3 Pole Ferrite
