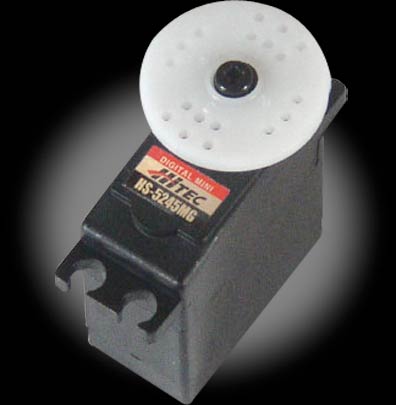

With a custom programmable digital circuit and Hitec's strong metal and M/P gear
train technology, the HS-5245MG is ideal for applications that call for a
small, lightweight, fast and high torque servo.

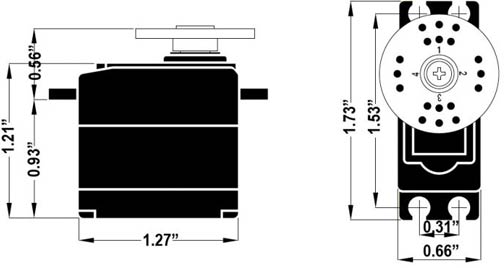

SPECS:
Length: 1.3"
Width: 0.7"
Height: 1.2"
Weight: 1.12 ounces
Torque: 61 oz/in at 4.8V; 76 oz/in at 6V
Speed: 0.15sec/60deg at 4.8V with no load; 0.12sec/60deg at 6V with no load
Bearing Type: Dual Ball Bearing
Gear Type: 4 Metal, 1 Resin
Motor Type: 3 Pole Ferrite
