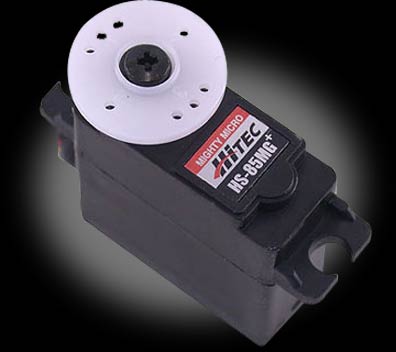

The HS-85BB features a high power motor for greater speed and torque. The HS-85MG
is the choice of modelers looking for a high performance servo without breaking
the bank. The ball bearing supported output shaft and sturdy gear trains are
preferred for smaller glow and electric airplanes, heli's and sailplanes.

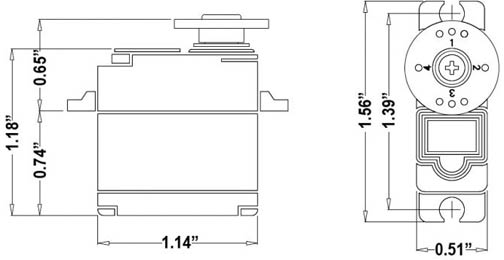

SPECS:
Length: 1.14"
Width: 0.51"
Height: 1.18"
Weight: 0.80 ounces
Torque: 41.66 oz/in at 4.8V; 48.6 oz/in at 6V
Speed: 0.16sec/60deg at 4.8V with no load; 0.14sec/60deg at 6V with no load
Bearing Type: Single Ball Bearing
Gear Type: 4 Metal, 1 Nylon
Motor Type: 3 Pole Ferrite
