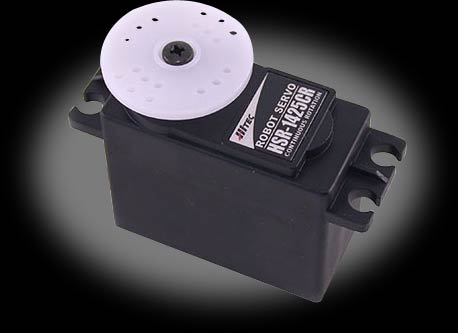

0-HRC31425CR Hitec HS-1425CR Continuous Rotation Robot Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Introducing the all new HSR-1425CR Continuous Rotation servo. If you are looking for a servo to pan or tilt your small camera or sensor multiple turns, this is the servo you need. If you are looking for a servo to power the wheels on your small robot, this is the servo you need. Fully proportional speed forward and reverse for precise movements. The potentiometer has been taken out and the dead-band increased to eliminate &ldquo;creep&rdquo; that occurs in many other servos that are modified for continuous rotation. Dual ball bearings on the output shaft ensure long lasting performance. Note: This servo does not have position feedback.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Control System: +Pulse Width Control 1500usec Neutral<br>
Required Pulse: 4.8-6.0 Volt Peak to Peak Square Wave<br>
Operating Voltage Range: 4.8 - 6.0 Volts<br>
Speed: 44 RMP at no load @ 4.8V; 52 RMP at no load @ 6.0V<br>
Torque: 38.8 0z-in @ 4.8V; 42 0z-in @ 6.0V<br>
360 Modifiable: Completed<br>
Direction: Clockwise/Pulse Traveling 1500 to 1900usec<br>
Motor Type: Brushed<br>
Bearing Type: Dual Ball Bearing MR106<br>
Gear Type: Nylon Gears<br>
Connecotr Wire Length: 7in.<br>
Dimensions: 1.59 x 0.77 x 1.44 in.<br>
Weight: 0.33oz</font></p>
