Hitec HS-77BB Low Profile Servo
With its low profile design and strong standing torque the HS-77BB is a great choice for small applications.
$24.49
Robot MarketPlace - Hitec HS-77BB Low Profile Servo
CLOSE X
Loading Image...
RC Gear
    Servos - Standard


Click photo to enlarge.

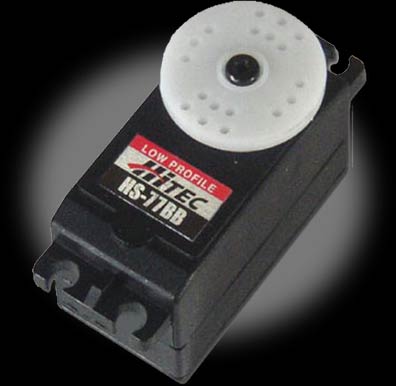

Hitec HS-77BB Low Profile Servo
Part# 0-HRC31077S



Please see this product on the new Robot MarketPlace web site. Click here






General Product Information
Alternate Photos
Reviews & Comments

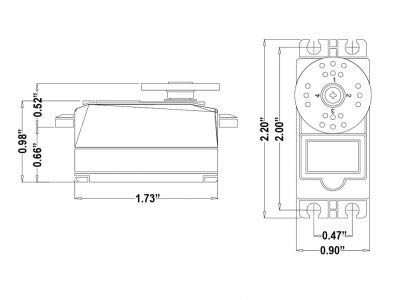

SPECS:
Length: 1.73"
Width: 0.90"
Height: 0.98"
Weight: 1.23 ounces
Torque: 61.1 oz/in at 4.8V; 76.3 oz/in at 6V
Speed: 0.18sec/60deg at 4.8V with no load; 0.14sec/60deg at 6V with no load
Bearing Type: Single Ball Bearing
Gear Type: 4 POM Resin Gears, 1 Metal Gear
Motor Type: 3 Pole Ferrite
