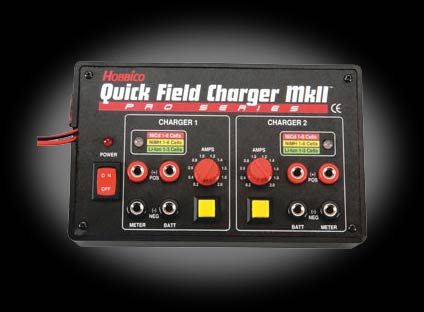

Have a variety of flight line charging options--with one handy unit! Hobbico's Quick Field Charger MkII features two ports with completely independent circuitry. That means you can charge one pack at a time, or two at once. You can recharge transmitter or receiver NiCd or NiMH packs, single cell glow ignitors, even the lithium-ion and lithium-polymer batteries that power park flyers...on EITHER side. Plus, it's super-easy to use, and comes with lots of safety features. You've never seen a field charger as valuable and versatile as the Quick Field Charger MkII!
EACH port offers these great benefits!
-Ability to handle 1-8 cell NiCd or NiMH radio batteries and 1-3 cell Li-Ion or LiPo park flyer batteries.
-0.2A (200mA) to 2.0A of adjustable, linear charge current (1A max. for Li-Ion/LiPo).
-0, 50mA, 85mA and 100mA trickle charge current for NiCd and NiMH packs.
-Tri-color LEDs and sound cues for ease of set-up and operation.
-Built-in jacks for external battery voltage monitoring with a voltmeter.
-Simple push-button start-up.
-"Peak detection" charging for NiCd and NiMH packs.
-"Constant current/constant voltage" charging for Li-Ion/LiPo batteries.
-Visual and audible error messages that indicate reverse polarity and poor output connections.
-Can be mounted on a field box, or used as a stand-alone unit with the included rear enclosure.
Specs |
Input Voltage |
10-15V DC |
Battery Types |
NiCad, NiMH, Li-Ion, LiPo |
Number of Cells |
1-8 NiCad/NiMH
1-3 Li-Ion/LiPo |
Fast Charge Current |
0.2-2.0A linear (1A max Li-Ion/LiPo) |
Fast Charge Termination |
Peak detection for NiCad/NiMH
Constant current/constant voltage for Li-Ion/LiPo |
Trickle Charge Current |
0, 50, 85, and 100mA
No trickle charge for Li-Ion/LiPo |
Output Connectors |
Banana jacks |
Fuse |
7.5A spade (auto) |
Case Size |
6.25 x 4.0 x 1.5 in. |
Weight |
12.0 oz. |
