0-HCAP0280 Accu-Cycle Elite Battery Cycler <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br>
Charges and Discharges 1-3 cell Lithium-Ion and Lithium Polymer packs<br>

Peak Charges, Discharges and Cycles 1-10 cell NiCd or NiMH packs<br>
Charges two batteries at once<br>
Auto Smart Set automatically calculates safety time-out, Charge Rate,
TRICKLE Rate and Discharge Voltage cut-off based on battery type,
capacity, and voltage<br>
Custom Charging and Discharging routines can be created for up to 10
packs and stored in memory<br>
Prevents overcharging with Peak Detection for NiCd and NiMH packs and
CC/CV detection for Lithium-based packs<br>
On-screen messages appear on large easy to see two line 16-character
LCD screen, messages feature less abbreviations, better
explanations and units of measurement with every number<br>
AC/DC compatible for at home or on the field recharging<br>
Two Temperature Sensor ports<br>
</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Includes</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br>
One Accu-Cycle Elite cycler<br>
One AC adapter/power supply <br>
Two (Red &amp; Black) alligator clips w/banana jacks<br>
One instruction booklet<br>
One Main/Memory menu sheet<br>
One NiCd, NiMH, and Lithium menu sheet<br>
One Charge/Discharge chart w/blank memory chart<br>
Two year warranty (USA and Canada only)</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br>
Input Voltage: 11-14.5V DC<br>
AC Power Supply: 110V AC 60Hz input, 14.5V DC 2.5A output<br>
Number of Output Ports: two<br>
For BOTH Outputs:
Battery Types: Nickel-Cadmium (NiCd); Nickel-Metal Hydride (NiMH);
Lithium Polymer (LiPo); Lithium-Ion (Li-Ion)<br>
Number Cells: 1-10 NiCd or NiMH (1.2-12V);
1-3 LiPo or Li-Ion (3.6-11.1V)<br>
Fast Charge Current: 50-2000mA<br>
Fast Charge Termination:
NiCd/MH -&quot;negative deltaV'&quot; Peak Detection;
LiPo -&quot;Constant-Current/Constant-Voltage&quot; (4.2V/cell max.);
Li-Ion -&quot;Constant-Current/Constant-Voltage&quot; (4.lV/cell max.)<br>
Peak Detection Sensitivity: 3-15mV per cell adjustable<br>
Fast Chg Safety Timer: automatically calculated<br>
TRICKLE Charge Current: 0-200mA<br>
Peak Detection Delay: 3 minutes<br>
Discharge Current: 50-2000mA<br>
Discharge Cutoff Voltage: 0.8-1.2V per cell adjustable for NiCd &amp; NiMH;
3.7V per cell fixed for Li-Ion and LiPo<br>
Cycle Count: 1 to 5 (NiCd and NiMH only)<br>
Cycle Delay- Chg/Dsch: 10 minutes<br>
Status Indicators: two tri -color LEDs (Red/Amber/Green)<br>
Optional Temp. Cutoff: 60-130°F (15-54°C)<br>
Output Connectors: banana jacks<br>
Battery Memories: ten<br>
Display Type: 2-line, 16 character LCD<br>
Case Size: 3.7 x 6.1 x 1.2 in (94 x 30.5 x 155mm)<br>
Weight: 13.23oz (375g, not including Power Supply)<br>
Length: 6.1&quot; (155mm)<br>
Width: 3.7&quot; (94mm)<br>
Height: 1.2&quot; (30.5mm)</font></p>

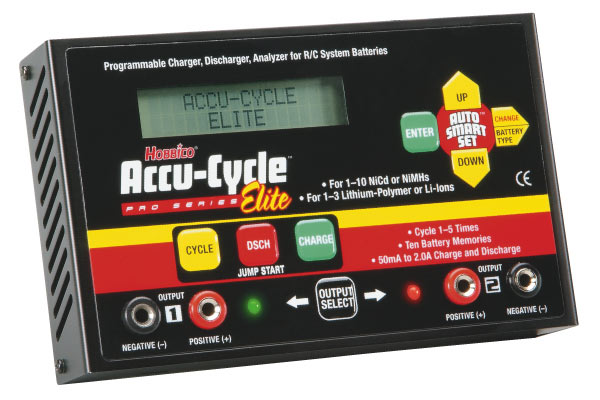

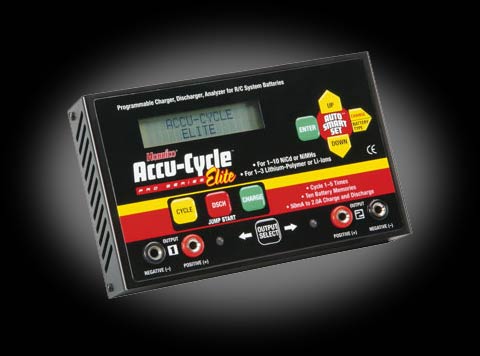

Accu-Cycle Elite Battery Cycler
Accu-Cycle Elite is flexible enough to handle NiCd, NiMH, Li-Po and Li-Ion batteries, and offers a large variety of adjustable functions, yet is very easy to program and understand its numerous display screens.

$109.99
Robot MarketPlace - Accu-Cycle Elite Battery Cycler
CLOSE X
Loading Image...

Batteries
    Battery Chargers - LiPoly

Accu-Cycle Elite Battery Cycler
Part# 0-HCAP0280




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Other Documentation
Reviews & Comments

Features
Charges and Discharges 1-3 cell Lithium-Ion and Lithium Polymer packs
Peak Charges, Discharges and Cycles 1-10 cell NiCd or NiMH packs
Charges two batteries at once
Auto Smart Set automatically calculates safety time-out, Charge Rate, TRICKLE Rate and Discharge Voltage cut-off based on battery type, capacity, and voltage
Custom Charging and Discharging routines can be created for up to 10 packs and stored in memory
Prevents overcharging with Peak Detection for NiCd and NiMH packs and CC/CV detection for Lithium-based packs
On-screen messages appear on large easy to see two line 16-character LCD screen, messages feature less abbreviations, better explanations and units of measurement with every number
AC/DC compatible for at home or on the field recharging
Two Temperature Sensor ports

Includes
One Accu-Cycle Elite cycler
One AC adapter/power supply
Two (Red & Black) alligator clips w/banana jacks
One instruction booklet
One Main/Memory menu sheet
One NiCd, NiMH, and Lithium menu sheet
One Charge/Discharge chart w/blank memory chart
Two year warranty (USA and Canada only)

Specs
Input Voltage: 11-14.5V DC
AC Power Supply: 110V AC 60Hz input, 14.5V DC 2.5A output
Number of Output Ports: two
For BOTH Outputs: Battery Types: Nickel-Cadmium (NiCd); Nickel-Metal Hydride (NiMH); Lithium Polymer (LiPo); Lithium-Ion (Li-Ion)
Number Cells: 1-10 NiCd or NiMH (1.2-12V); 1-3 LiPo or Li-Ion (3.6-11.1V)
Fast Charge Current: 50-2000mA
Fast Charge Termination: NiCd/MH -"negative deltaV'" Peak Detection; LiPo -"Constant-Current/Constant-Voltage" (4.2V/cell max.); Li-Ion -"Constant-Current/Constant-Voltage" (4.lV/cell max.)
Peak Detection Sensitivity: 3-15mV per cell adjustable
Fast Chg Safety Timer: automatically calculated
TRICKLE Charge Current: 0-200mA
Peak Detection Delay: 3 minutes
Discharge Current: 50-2000mA
Discharge Cutoff Voltage: 0.8-1.2V per cell adjustable for NiCd & NiMH; 3.7V per cell fixed for Li-Ion and LiPo
Cycle Count: 1 to 5 (NiCd and NiMH only)
Cycle Delay- Chg/Dsch: 10 minutes
Status Indicators: two tri -color LEDs (Red/Amber/Green)
Optional Temp. Cutoff: 60-130; (15-54。)
Output Connectors: banana jacks
Battery Memories: ten
Display Type: 2-line, 16 character LCD
Case Size: 3.7 x 6.1 x 1.2 in (94 x 30.5 x 155mm)
Weight: 13.23oz (375g, not including Power Supply)
Length: 6.1" (155mm)
Width: 3.7" (94mm)
Height: 1.2" (30.5mm)
