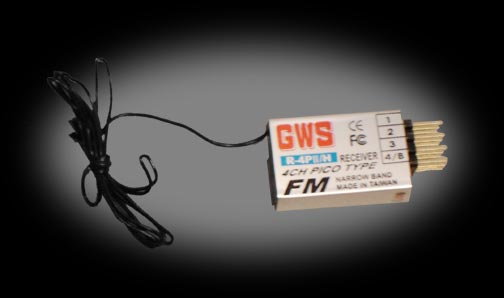

0-GWR4PII75HF GWS 75Mhz 4-Channel Pico Receiver - Horizontal Pins - Futaba-Style <font color="red" size="2" face="Arial, Helvetica, sans-serif"><b>This product has been discontinued. Please see <a href="http://www.robotmarketplace.com/products/0-GWR4PII75F.html">this similar product</a> instead.</b><p></font> <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
is the very tiny 75Mhz receiver that is taking the small combat robot
world by storm. Tiny and very lightweight at only 4.8 grams! Also
tested in many combat robots and is extremely shock-resistant.</font></p>
<p align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications:</font></p>
<table width="80%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td width="26%"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Channels</font></td>
<td width="35%"><div align="center"></div> <div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15 x 25 x 8.6
mm </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.8 grams <br>
(0.17
oz) </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Antenna
Length </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50cm</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Voltage
Range </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.6 - 7.2 volts</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Operating
Range </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150
meters</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Modulation</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">FM
(PPM) single conversion</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Connector</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">standard
3-pin (universal PWM)</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Compatible
Radio System </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All
75Mhz GWS Radios, many other brand 75Mhz systems </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Compatible
Crystals </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a href="rc_crystals_main.html" target="_top">GWS
UM-1</a> receiver crystals only (not included)</font></div></td>
</tr>
</table>
