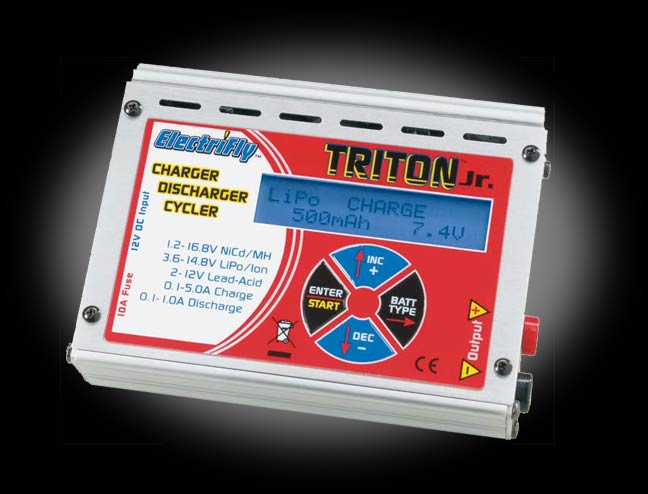

0-GPMM3152 Triton JR DC Computer Charger <font color="red" size="2" face="Arial, Helvetica, sans-serif"><b>This product has been discontinued. Please see <a href="http://www.robotmarketplace.com/products/0-GPMM3155.html">this similar product</a> instead.</b><p></font><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is the ElectriFly TRITON Jr. DC Computerized
Charger, Discharger and Cycler from Great Planes.
Ideal for smaller electric flight applications
including airplane and electric heli batteries,
transmitter and receiver batteries and field batteries.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Charges 1-14 Nickel-Cadmium or Nickel-Metal Hydride cells,
1-4 Lithium-Polymer or Lithium-Ion cells (LiPo or Li-Ion),
or 2-12V lead-acid batteries (Pb)<br>
Precision &quot;Zero DeltaV&quot; Peak Detection for NiCd and NiMH batteries<br>
&quot;Constant Current/Constant Voltage&quot; charge method for Pb and LiPo/
Li-Ion batteries<br>
.1 - 5A adjustable Charge Current, limited to 1C rating for LiPo
batteries<br>
.1 - 1A adjustable Discharge Current<br>
Automatically sets TRICKLE Charge Current at 1/20th the Fast Charge
current setting (NiCd/MH only)<br>
Adjustable Discharge Cutoff Voltages for NiCd/MH, pre-set voltages
for Pb and LiPo/Ion<br>
Cycles NiCd and NiMH batteries from 1 to 5 times<br>
Durable membrane touchpad input controls, and very simple
programming menu<br>
Easy to see, 32 character (2x16) LCD with Blue back-lighting that
displays Input and Output Volts, Peak Volts, Average Discharge
Volts, Charge and Discharge Capacity, Currents and Time, and error
messages<br>
Status screen constantly updates Capacity, Battery Voltage, Current,
and Time during use<br>
Audible beeper aids in programming and notifies of function changes<br>
Safety features include Fast Charge Safety Timer, Current Overload
and Reverse Polarity Protection<br>
Small and lightweight, with a rugged extruded aluminum case for
long-lasting durability and excellent heat dissipation</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Input Voltage: 11 - 15V DC<br>
Input Connections: Large alligator clips<br>
Number of Outputs: One<br>
Battery Types, # Cells: 1-14 NiCd/MH;
1-4 LiPo or Li-Ion (3.6 or 3.7V cells);
2, 4, 6, 8, 10, 12V Pb (2V per cell)<br>
Fast Charge Current: .1-5A NiCd/MH (.1A step, 63W max.);
1C rating LiPo/Li-Ion (63W max.)<br>
Fast Charge Termination: &quot;Zero DeltaV&quot; Peak Detection NiCd/MH;
&quot;CC /CV&quot; for Pb and LiPo/Ion<br>
Peak Sensitivity: 8mV fixed NiCd, 5mV fixed NiMH<br>
Peak Delay at Start: 3 minutes fixed<br>
TRICKLE Charge Current: Charge current/20 (NiCd/MH only)<br>
Fast Charge Safety Timer: NiCd/MH 1.5 hours, LiPo and Pb 2 hours<br>
Thermal Cutoff: Not available<br>
Discharge Current: .1-1A (.01 step, 5W max)<br>
Discharge Cutoff Voltage: NiCd/MH .1-16.8V (.1 step);
Pb fixed at 1.8V per cell;
Li-Ion/LiPo fixed at 3V per cell<br>
Cycle Count: 1 - 5 Cycles<br>
Battery Memories: One<br>
Programming Controls: Membrane touchpad, four buttons<br>
Display Type: 2 x 16 LCD, Blue backlight<br>
Displayed Info: Input and Output Volts, Peak Volts, Average Discharge<br>
Volts, Charge and Discharge Capacity, Currents and Time, Errors<br>
Audible Indicators: Beeper<br>
Output Connectors: Banana jacks<br>
Case Material: Extruded aluminum<br>
Current Overload: 10A spade fuse<br>
Case Size: 4.7 x 3.6 x 1.2 in (118 x 92 x 30mm)<br>
Weight: 13.1oz (371g)</font></p>
<p><font color="ffff00" size="2" face="Arial, Helvetica, sans-serif">Note</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">: This charger requires either an external 12VDC <a href="power_supplies.html" target="_top">Power
Supply</a> or Battery,
it does NOT plug in to 110V AC power</font></p>
