0-GPMM3015 PolyCharge4 DC 4 Output 1-4 Cell LiPo Charger <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif"><div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/O6AIaQAQlgc?autoplay=1&rel=0" title="ElectriFly PolyCharge4 - The Hobby MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/0-GPMM3015.jpg" alt="ElectriFly PolyCharge4 - The Hobby MarketPlace" /></a></div></div>
Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Four outputs independently Charge 1-4 cell Lithium Polymer batteries<br>
Automatically detects number of cells on each output-no switch to set &quot;Constant Current/Constant Voltage&quot; Charge method<br>
Each output features push-button START/STOP control, three-hour safety timer and dial to set battery capacity from 300mAh-3000mAh<br>
Audio and tri-color LEDs provide warnings for improper input voltage and output reverse polarity<br>
Built-in cooling fan<br>
Reverse polarity and current overload protection on input</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs </font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Input Voltage: 12-15V DC <br>
Number of Outputs: 4 <br>
Input Connectors: Alligator clips, hard-wired directly to charger <br>
Case Size: 8.2&quot; x 1.5&quot; x 5&quot; (208x38x126mm) Weight: 21.8oz (617g)<br>
Battery Type: 1-4 (3.7-14.8V) Lithium Polymer cells only <br>
Charge Control: Push-button <br>
Charge Termination: &quot;Constant Current/Constant Voltage&quot; <br>
Battery Capacity Range: 300-3000mAh (for batteries larger than 3000mAh, full Charge time will exceed one hour) <br>
Fast Charge Current: 300mA-3.0A <br>
Status Indicators: Tri-colored LED and audible buzzer <br>
Charge Output Jacks: Banana jacks <br>
Safety Timer: 3-hour maximum Charge time <br>
Fuse: 20A replaceable auto type spade fuse </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Note: This charger requires either an external 12VDC <a href="power_supplies.html" target="_top">Power Supply</a> or Battery, it does NOT plug in to 110V AC power</font></p>

NOTE: The instructions for the ElectriFly PolyCharge4 charger state the built-in fan turns ON when a load is present on any of the four outputs. This is incorrect. The fan turns ON any time input power is applied to the charger. We regret this error.

PolyCharge4 DC 4 Output 1-4 Cell LiPo Charger
Four output DC powered battery charger for Lithium Polymer batteries only.

$94.99
Robot MarketPlace - PolyCharge4 DC 4 Output 1-4 Cell LiPo Charger

Batteries
    Battery Chargers - LiPoly


Click photo to enlarge.

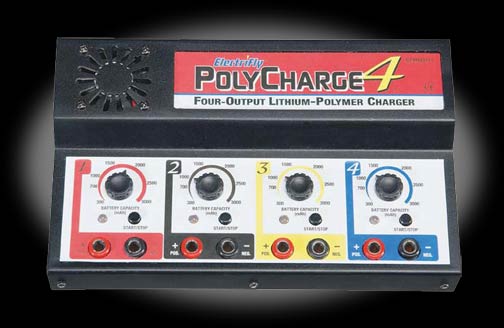

PolyCharge4 DC 4 Output 1-4 Cell LiPo Charger
Part# 0-GPMM3015
