0-GPMM1840 Great Planes Silver Series 45A Brushless ESC 5V/2A BEC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is the ElectriFly Silver Series 45 amp Brushless Electronic Speed Control. Great for larger high performance airplanes. Delivering 45A of continuous current with a built-in Battery Circuit which can handle 2A, this ESC is simple to use and very affordable. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Compatible with NiCd, NiMH and LiPo batteries<br>
Auto-detects input volts and sets Low-Voltage cutoff<br>
8.5kHz switching frequency, for good run-time and cool operation<br>
Pre-installed Universal radio connector<br>
Pre-installed WS Deans Ultra male connector<br>
Pre-installed gold plated 4mm female bullet connectors for motor<br>
High powered switching BEC (Battery Eliminator Circuit) which handles 3 or 4 standard servos<br>
Full proportional forward and smooth throttle response with ON/OFF brake<br>
Safe Start System<br>
Thermal Protection stops motor when maximum temperature 230°F is reached
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Volts </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7-12 NiCad/NiMH<br>
3-4 LiPo (20V max w/o BEC)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5A continuous, 50A surge </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V/2.0A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max. Power </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">500 watts </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.5kHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On Resistence </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.008 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On/off</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Colts Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery volts x 0.67 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thermal Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">230&deg;F</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.76 x 1.30 x 0.39 in. (70 x 33 x 10 mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.76 oz. (50g) </font></td>
</tr>
</table>

Great Planes Silver Series 45A Brushless ESC 5V/2A BEC
Delivering 45A of continuous current with a built-in Battery Circuit which can handle 2A, this ESC is simple to use and very affordable.

$59.99
Robot MarketPlace - Great Planes Silver Series 45A Brushless ESC 5V/2A BEC

Electronics
    Brushless Motor Controllers

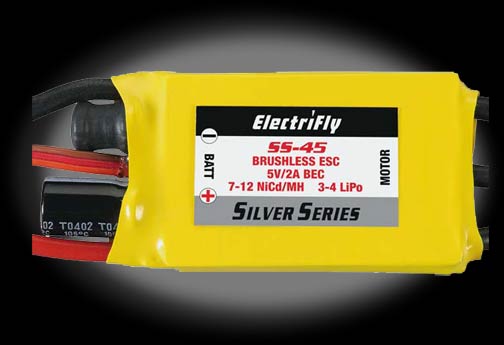

Click photo to enlarge.
