0-GPMM1830 Great Planes Silver Series 35A Brushless ESC 5V/2A BEC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is the ElectriFly Silver Series 35 amp Brushless Electronic Speed Control. Great for medium to larger high performance airplanes. Delivering 35A of continuous current with a built-in Battery Eliminator Circuit which can handle 2A, this ESC is very simple to use and very affordable.
</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Compatible with NiCd, NiMH and LiPo batteries<br>
Auto-detects input volts and sets Low-Voltage cutoff<br>
8.5kHz switching frequency, for good run-time and cool operation<br>
Pre-installed Universal radio connector<br>
Pre-installed WS Deans Ultra male connector for battery<br>
Pre-installed gold plated 3.5mm female bullet connectors for motor<br>
High powered switching BEC (Battery Eliminator Circuit) which handles 3 or 4 standard servos<br>
Full proportional forward and smooth throttle response with ON/OFF brake<br>
Safe Start System<br>
Thermal Protection stops motor when maximum temperature 230°F is reached
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Volts </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7-12 NiCad/NiMH<br>
3-4 LiPo (20V max w/o BEC)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">35A continuous, 40A surge </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V/2.0A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max. Power </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">350 watts </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.5kHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On Resistence </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.01 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On/off</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Colts Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery volts x 0.67 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thermal Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">230&deg;F</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 x 0.31 x 1.02 in. (52 x 8 x 26mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.13 oz. (32g) </font></td>
</tr>
</table>

Great Planes Silver Series 35A Brushless ESC 5V/2A BEC
Delivering 35A of continuous current with a built-in Battery Eliminator Circuit which can handle 2A, this ESC is very simple to use and very affordable.

$49.99
Robot MarketPlace - Great Planes Silver Series 35A Brushless ESC 5V/2A BEC

Electronics
    Brushless Motor Controllers

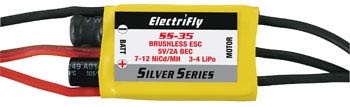

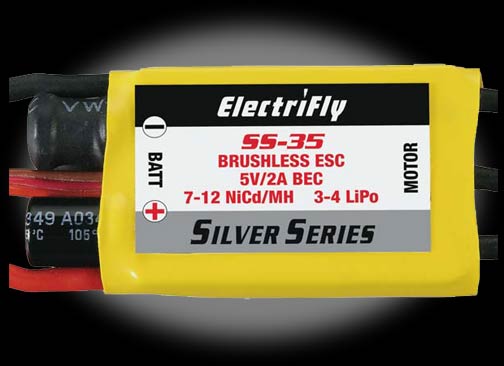

Click photo to enlarge.

Great Planes Silver Series 35A Brushless ESC 5V/2A BEC
Part# 0-GPMM1830
