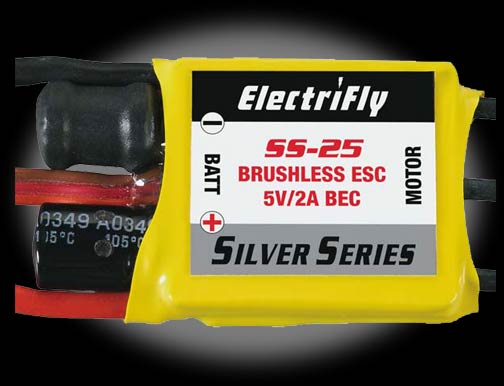

This is the ElectriFly Silver Series 25 amp Brushless Electronic Speed Control. Great for medium sized, high performance airplanes. Delivering 25A of continuous current with a built-in Battery Eliminator Circuit which can handle 2A, this ESC is very simple to use and very affordable.
Features
Compatible with NiCd, NiMH and LiPo batteries
Auto-detects input volts and sets Low-Voltage cutoff
8.5kHz switching frequency, for good run-time and cool operation
Pre-installed Universal radio connector
Pre-installed WS Deans Ultra male connector
Pre-installed gold plated 3.5mm female bullet connectors for motor
High powered switching BEC (Battery Eliminator Circuit) which handles 3 or 4 standard servos
Full proportional forward and smooth throttle response with ON/OFF brake
Safe Start System
Thermal Protection stops motor when maximum temperature 230¡F is reached
Specs |
Input Volts |
7-12 NiCad/NiMH
3-4 LiPo (20V max w/o BEC) |
Output Current |
25A continuous, 28A surge |
BEC |
5V/2.0A |
Max. Power |
250 watts |
Operating Frequency |
8.5kHz |
On Resistence |
0.15 ohms |
Brake |
On/off |
Low Colts Cutoff |
Battery volts x 0.67 |
Thermal Cutoff |
230°F |
Dimensions |
1.58 x 1.02 x 0.31 in. (40 x 26 x 8 mm) |
Weight |
0.92 oz. (26g) |
