0-GPMM1810 Great Planes Silver Series 12A Brushless ESC 5V/1A BEC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is the ElectriFly Silver Series 12 amp Brushless Electronic Speed Control. Great for small, lightweight, high performance airplanes from flat-foams to built-up 3Ds. Great for Outrunner style Brushless Motors, delivering 12A of continuous current with a built-in Battery Eliminator Circuit which can handle 1.5A. Simple to use and very affordable. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Compatible with NiCd, NiMH and LiPo batteries<br>
Auto-detects input volts and sets Low-Voltage cutoff<br>
8.5kHz switching frequency, for good run-time and cool operation<br>
Pre-installed Universal radio connector<br>
Pre-installed polarized micro connector for battery<br>
Pre-installed gold plated 2mm female bullet connectors for motor<br>
High powered switching BEC (Battery Eliminator Circuit) which handles 2 or 3 micro servos<br>
Full proportional forward and smooth throttle response with ON/OFF brake<br>
Safe Start System<br>
Thermal Protection stops motor when maximum temperature 230°F is reached
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Volts </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-12 NiCad/NiMH<br>
2-4 LiPo (20V max w/o BEC)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12A continuous, 15A surge </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V/1.5A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max. Power </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150 watts </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8.5kHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On Resistence </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.03 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On/off</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Colts Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery volts x 0.67 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thermal Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">230&deg;F</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.30 x 0.91 x 0.24 in. (33 x 23 x 6 mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.49 oz. (14g) </font></td>
</tr>
</table>

Great Planes Silver Series 12A Brushless ESC 5V/1A BEC
Great for Outrunner style Brushless Motors, delivering 12A of continuous current with a built-in Battery Eliminator Circuit which can handle 1.5A.

$34.99
Robot MarketPlace - Great Planes Silver Series 12A Brushless ESC 5V/1A BEC

Electronics
    Brushless Motor Controllers

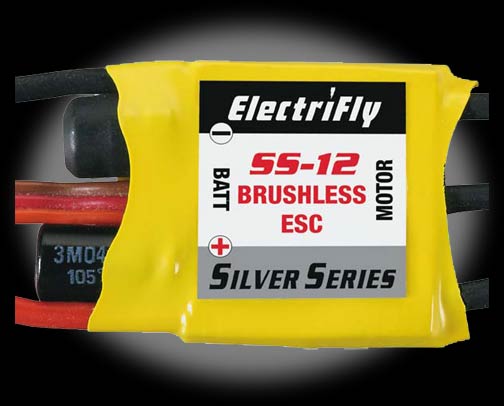

Click photo to enlarge.

Great Planes Silver Series 12A Brushless ESC 5V/1A BEC
Part# 0-GPMM1810
