0-GPMA1573 Great Planes Matt Chapman Eagle 580 EP 50in. ARF <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/v/ss35joEUO5g?autoplay=1&rel=0&color1=0x234900&color2=0x4e9e00" title="ElectriFly Matt Chapman Eagle 580 - The Hobby MarketPlace"><img src="videos/data/thumbnails/eagle580.jpg" alt="ElectriFly Matt Chapman Eagle 580 - The Hobby MarketPlace" /></a></div>

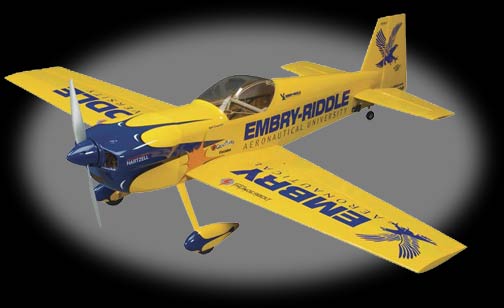

</div>Matt Chapman's famous Eagle 580 Unlimited Class aerobat now rules the R/C flying field as a 50" span electric! State-of-the-art construction and prefabrication have resulted in an Almost-Ready-to-Fly thrill-seeker that stands out from the rest -- in both looks AND performance!</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Construction: Balsa and ply with airfoiled control surfaces, motor box preinstalled with blind nuts providing perfect spacing for spinner backplate-no need for measuring, cowl ring also preinstalled<br>

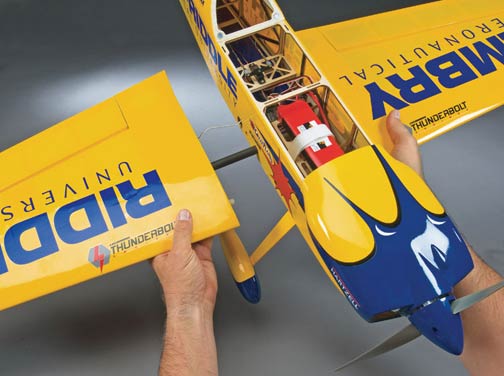

Wings: Two piece with carbon fiber wing joiner<br>
Covering: Top Flite MonoKote<br>
Aileron Control: Dual servo<br>
Cowl: Prepainted fiberglass<br>

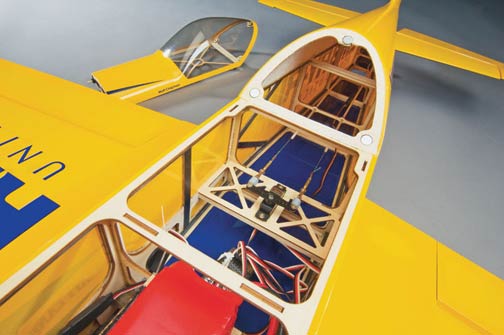

Canopy: Single, one-piece provides access to battery compartment and attaches with magnets<br>

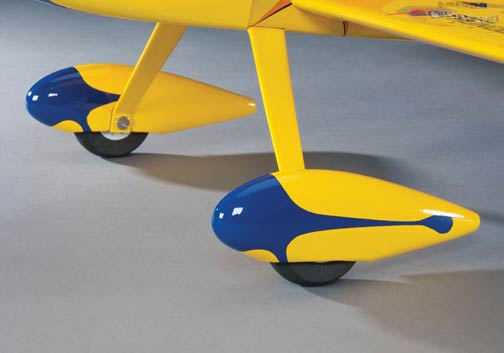

Wheel Pants: Prepainted fiberglass<br>
Landing Gear: Painted aluminum<br>
Wheels: Main-two foam 2.5" (63mm) diameter, tailwheel 0.87" (22mm) diameter<br>
Decals: Die-cut, Embry-Riddle Eagle 580 color scheme<br>
Spinner: Plastic, blue in color 2.25" (57mm) diameter<br>
Hardware: Full set included<br>
Building Time: Approximately 6-8 hours</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Includes </font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
ElectriFly ARF Matt Chapman Eagle 580 Airplane with fiberglass cowl<br>
Wheel pants and landing gear<br>
Wheels<br>
Hardware<br>
Photo-illustrated instruction manual</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="4"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wingspan</font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50in.</font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wing Area </font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">494 sq. in. </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.25 - 3.5 lbs. </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Airfoil</font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fully symmetrical, low wing placement </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wing Loading </font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15-16 oz/sq. ft. </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">47.75in.</font></td>
</tr>
<tr>
<td colspan="4"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Control Throws </font></td>
</tr>
<tr>
<td> </td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Rate </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High Rate </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3D</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Elevator</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3/4in. (19mm) 12°</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1in. (25mm) 17° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2-3/4in. (70mm) 52° </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rudder</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1in. (25mm) 10° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-1/2in. (38mm) 15° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4in. (102mm) 44° </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ailerons</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3/8in. (10mm) 7° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5/8in. (19mm) 13° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-1/2in. (38mm) 31° </font></td>
</tr>
</table>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
4-Channel Radio<br>
4 Micro Servos with 38 oz/in or more torque<br>
Y-harness<br>
Extensions: Two 24in., two 12in., one 6in.<br>
Brushless Motor<br>
45A ESC<br>
2200mAh LiPo Battery<br>
LiPo compatible Charget<br>
13 x 8E Propeller</font></p>
$149.99
Manual
