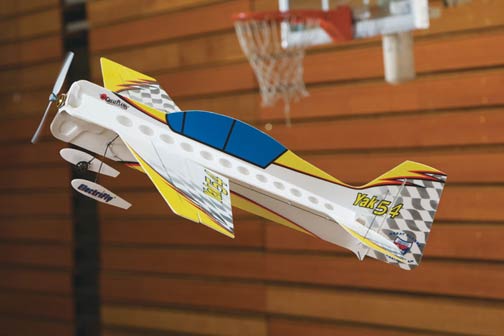

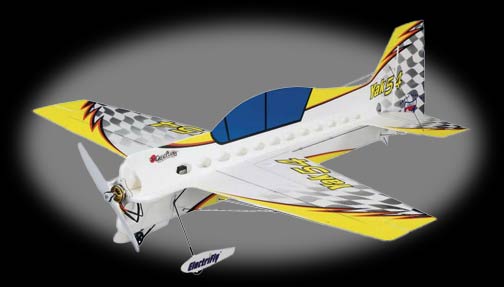

0-GPMA1131 ElectriFly Yak 54 3D Indoor EP ARF <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">With an average flying weight of just over 6 ounces, the Yak-54 is designed for totally "out there" aerobatics - and without any modifications. Add to that a high level of prefabrication and superior foam construction and you have a 3D indoor ace with no equals! Carbon fiber and laser-cut hardware help speed assembly, and the trim scheme is printed on. ElectriFly's RimFire™ 250 outrunner brushless motor provides plenty of power for putting the Yak-54 through its paces. With minimum throws the Yak-54 is a graceful sport flyer; maximizing the throws shows this plane's wild side, with the capability for unlimited 3D moves. All of the control surfaces are beveled and prehinged with genuine 3M® Blenderm® tape. The Yak-54's compact wingspan and light weight makes it nimble and easy to fly in even the smallest indoor flying sites, and the colorful graphics are highly visible from any angle.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />

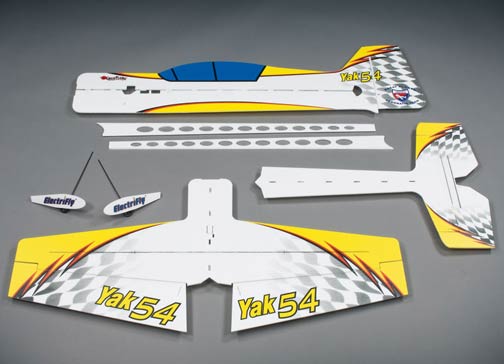

Construction: Lightweight 0.12" (3mm) extruded polystyrene Pro-Formance foam-an ElectriFly exclusive, alignment jigs aid in fast assembly and correct alignment, pre-applied graphics are lighter weight than paint all flying surfaces pre-hinged with genuine 3M Blenderm tape which is durable and feather light<br />
Wings: One-piece<br />
Aileron Control: Single servo<br />
Landing Gear: 0.08" (2mm) diameter wire with carbon tail skid<br />
Wheels: Two 1" (26mm) diameter hard plastic<br />
Hardware: Carbon fiber and laser cut<br />
Building Time: Ready to fly in 2-3 hours</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wingspan</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">32 in. (820mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wing Area </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">270 sq. in. (17.4 sq. dm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.5-6.7oz (155-190g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wing Loading </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.9-3.5oz/sq ft (9-11g/sq dm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">36.5 in. (920mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Center of Gravity </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3/4 in. (19mm) in front of + mark on fuselage </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Thorws (Elevator) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Rate: 1-3/4 in. (44mm) 30deg<br />
3D Rate: 2-3/4 in. (70mm) 52deg </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Throws (Rudder)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Rate: 1-3/4 in. (44mm) 20deg<br />
3D Rate: 4 in. (102mm) 53deg</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Throws (Ailerons)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Rate: 2 in. (51mm) 27deg<br />
3D Rate: 3-1/2 in. (89mm) 53deg</font></td>
</tr>
</table>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Radio: 4 channel<br />
Servos: Three micro high torque (1-rudder, 1-elevator, 1-aileron)<br />
Battery Charger: LiPo compatible<br />
Motor: Rimfire Outrunner Brushless<br />
ESC: 8A Silver Series For Brushless Motors<br />
Battery: Power Series 7.4V 300mAh Balanced 2S 20C LiPo Pack<br />
Propeller, building and field equipment</font></p>
